AHD (Analog High Definition Technology)

AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

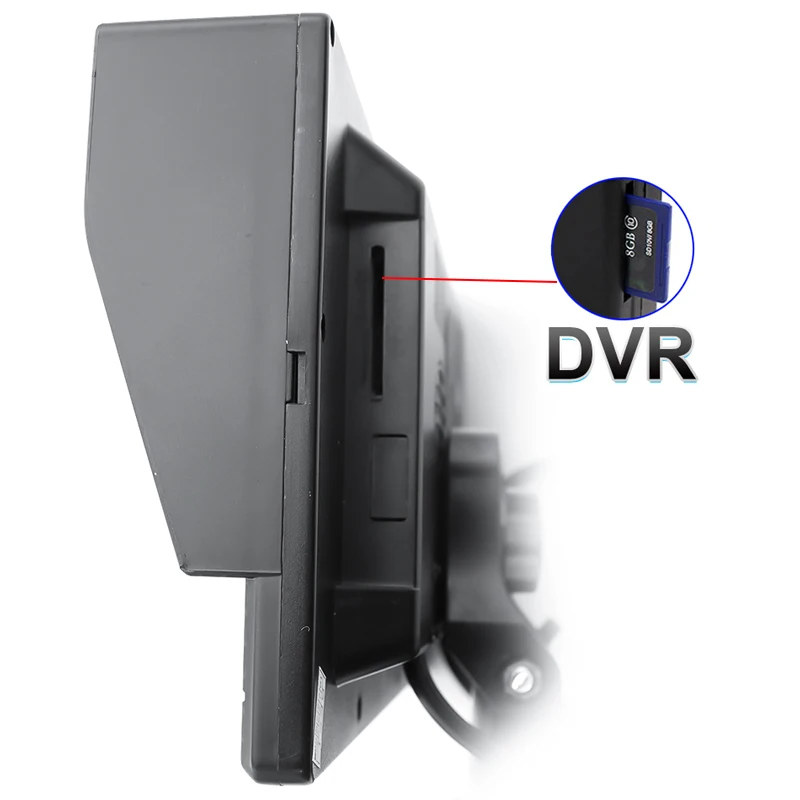

The monitor supports up to 128G

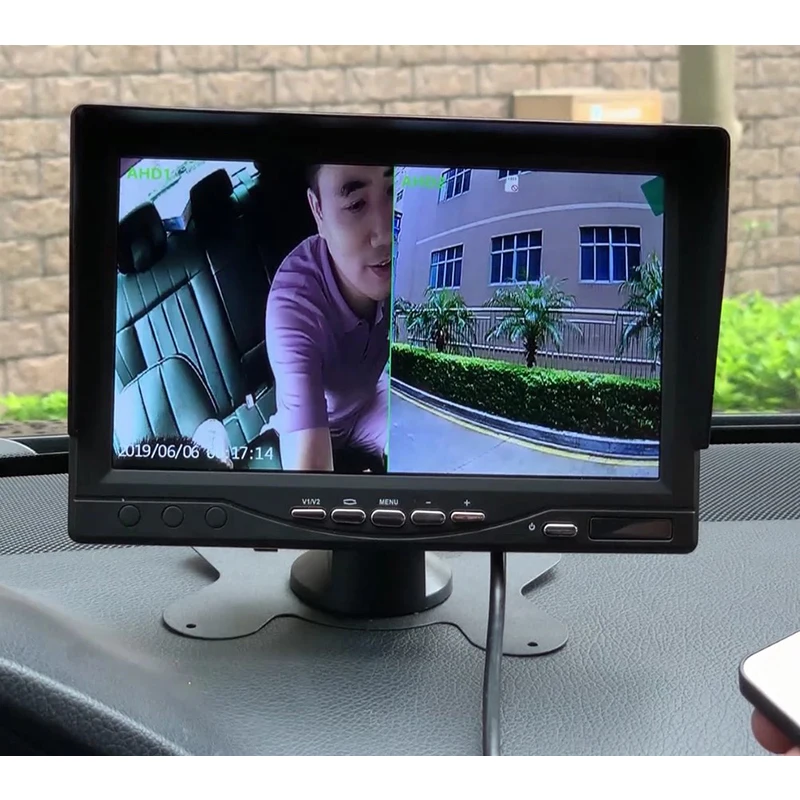

Two split screen:

Supports displaying two camera screens at the same time

Top AHD DVR Monitor

Resolution: 1024*600
Monitor Recording Pixel: (1 camera = 1920x1080) (2 cameras = 1080P+720P) ( our camera )
IPS Screen: Support
Screen Brightness: 500CD / M2
Contrast: 300:1
Power Voltage: 12V-30V
Support for loop recording

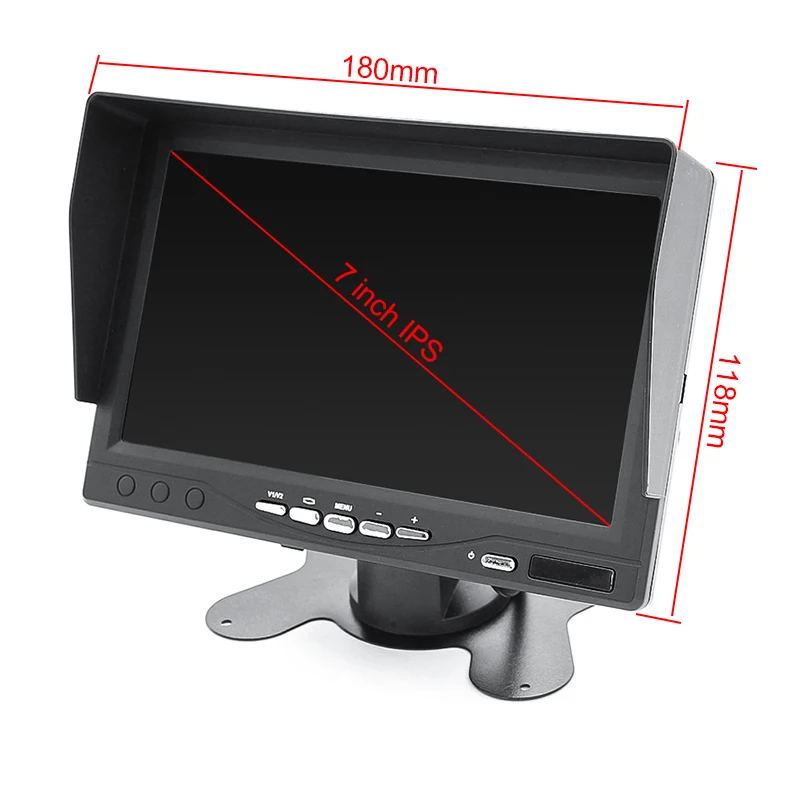

Screen Size: 7 Inch Display
Power Consumption: <=6W

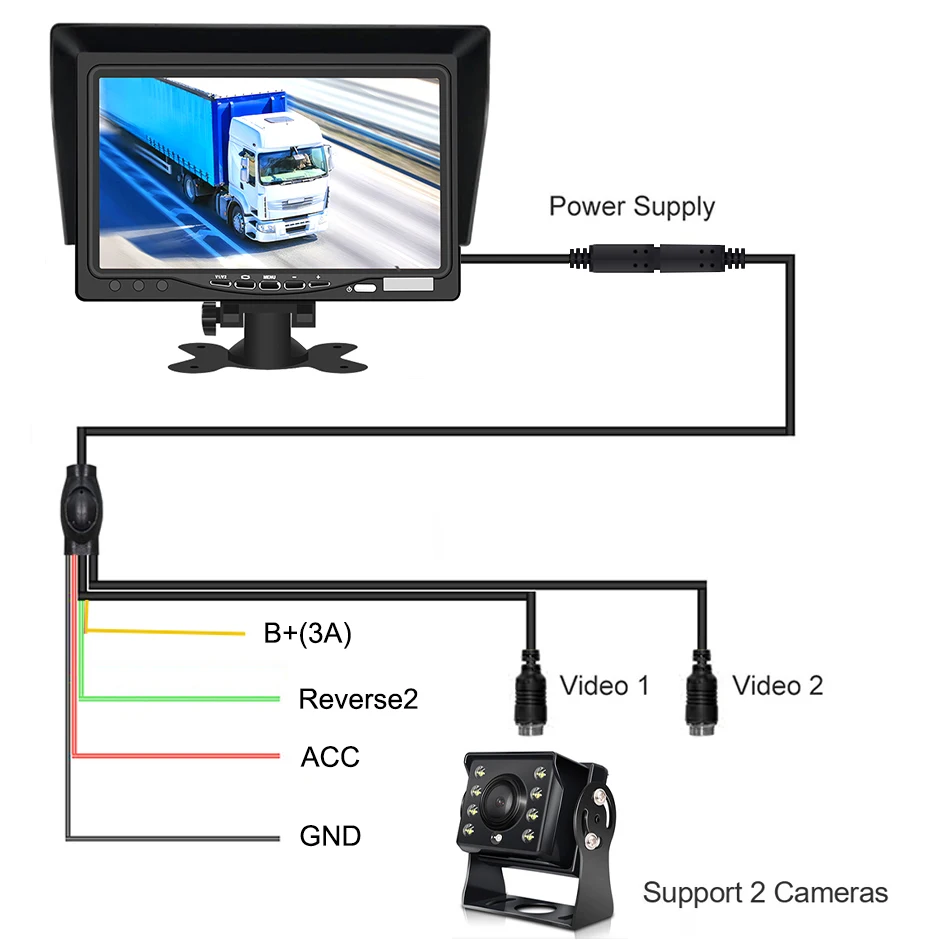

Video Input: V1/V2, auto switch
Package includes remote control
Support AHD camera and ordinary camera.
Night vision image: automatic gain control, automatic white balance, automatic back light compensation.
This monitor supports mirrored image display.
You can change the rear view image displayed by the rear view camera to the front view image.
Supports displaying two camera screens at the same time.

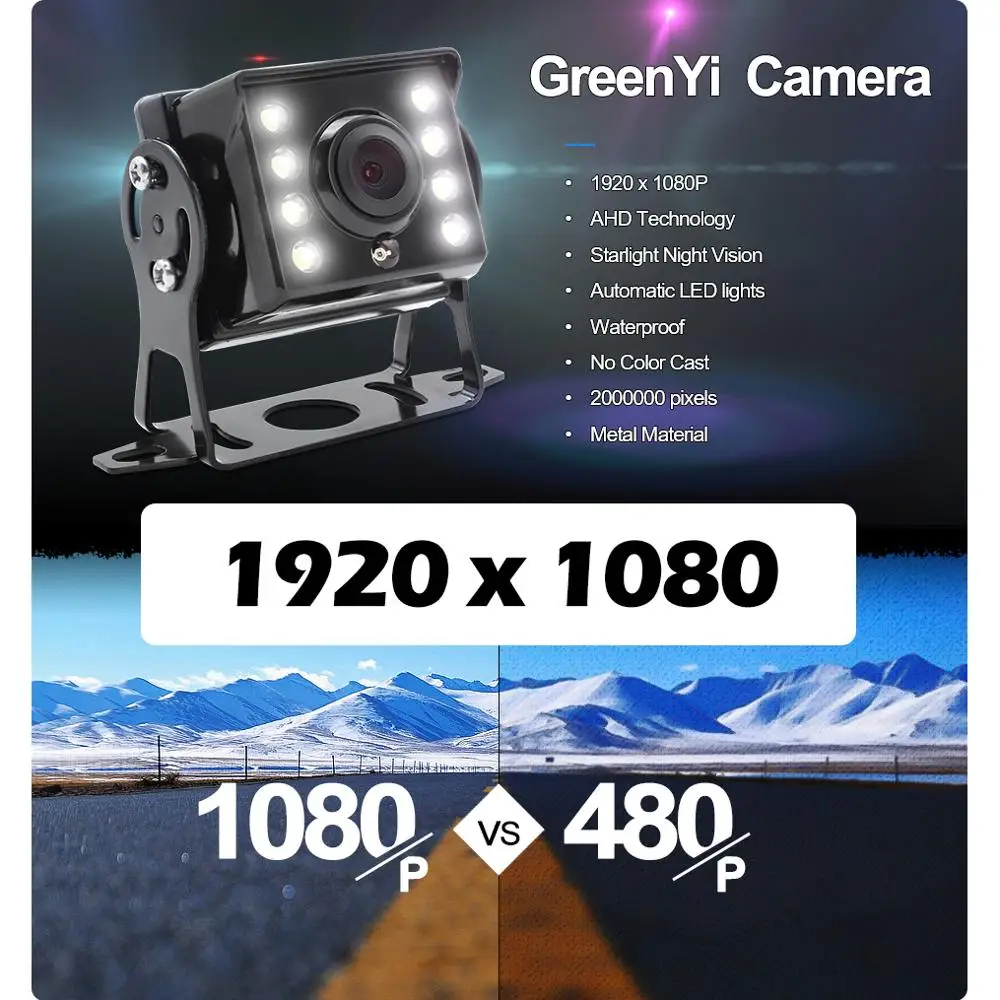

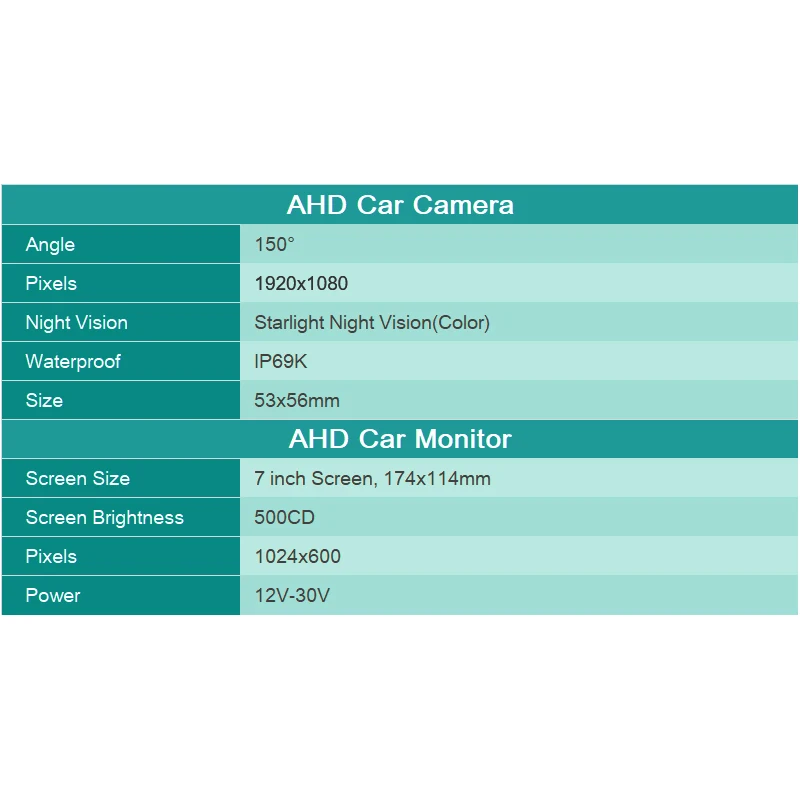

AHD 1080P Camera

Viewing angle: 150 degrees
Effective pixels: 1920×1080P
Image horizontal resolution: 130W pixels
Video output: AHD VIDEO (1080P)
Waterproof: IP68
Night Vision: Starlight Night Vision. The visible distance is greater than 20 meters.
Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation .
Working power supply: DC12V-24V
Working temperature: -20 ° C ~ +50 ° C
Tip: We send the LED rear view camera by default. If you need a front view camera or don't need an LED, please contact us.

We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in.
