Features:

AHD (Analog High Definition Technology)

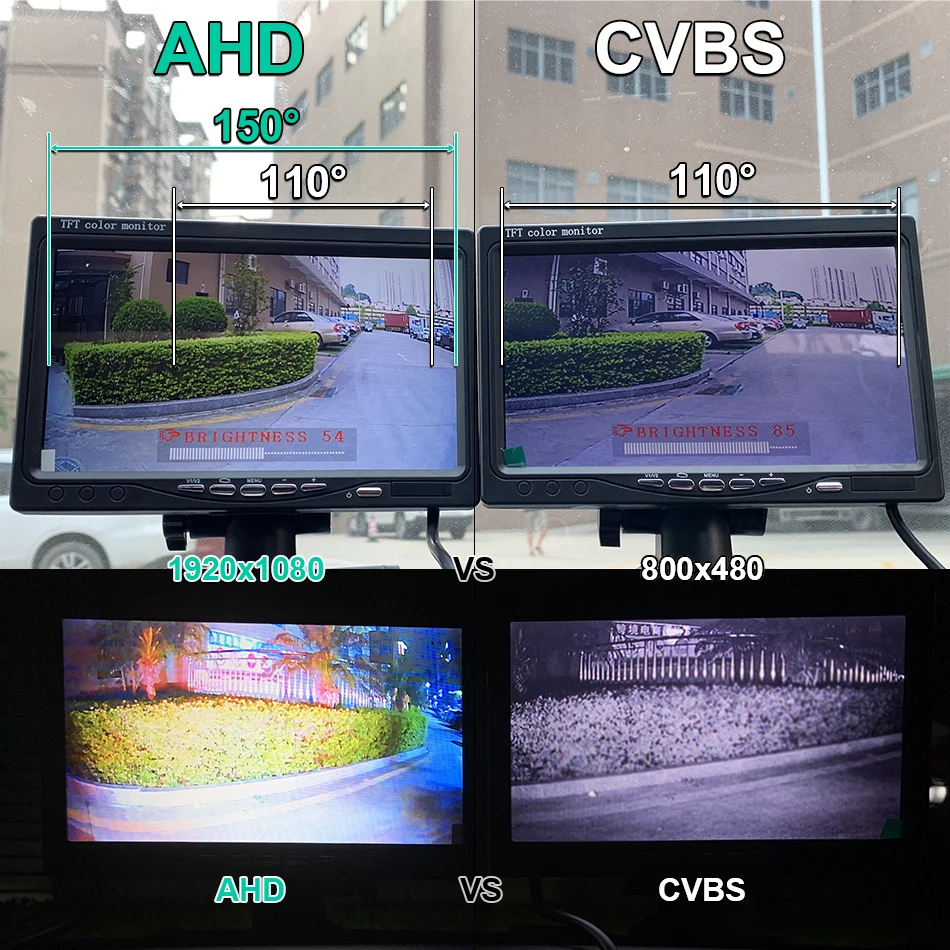

AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

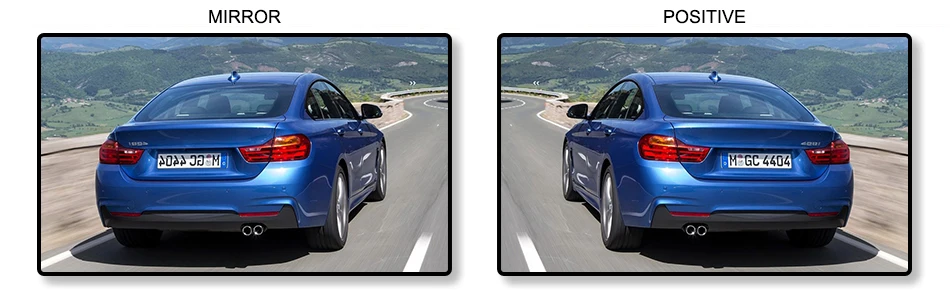

This monitor supports mirrored image display.
You can change the rear view image displayed by the rear view camera to the front view image.
Convenient display installation.

Tips: We send the LED rear view camera by default. If you need a front view camera or don't need an LED, please contact us.

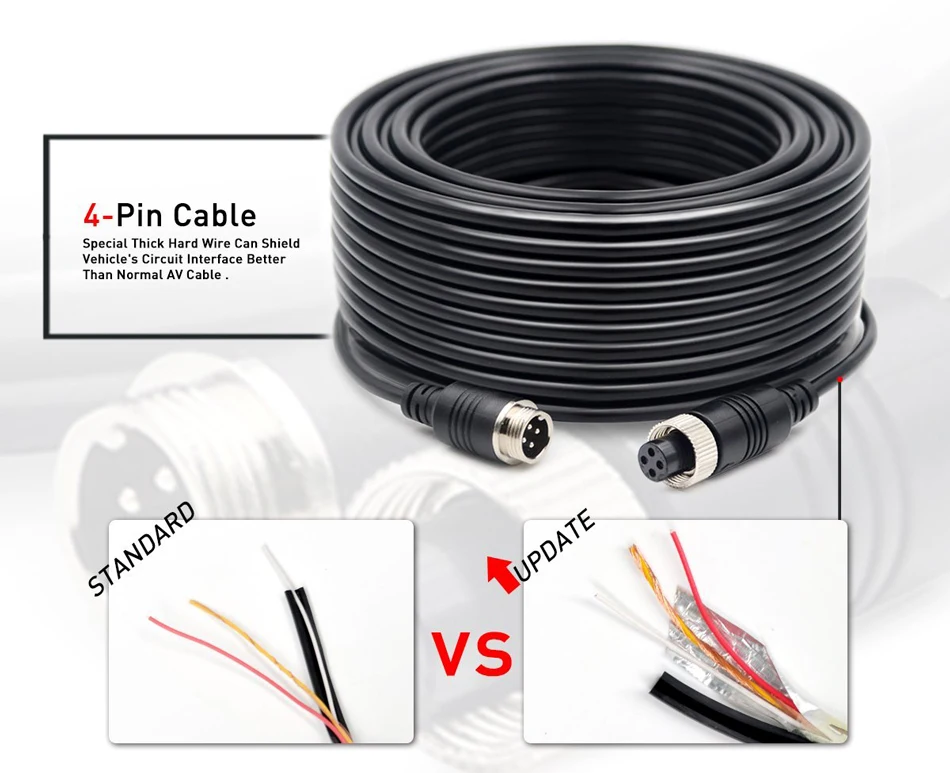

We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in.

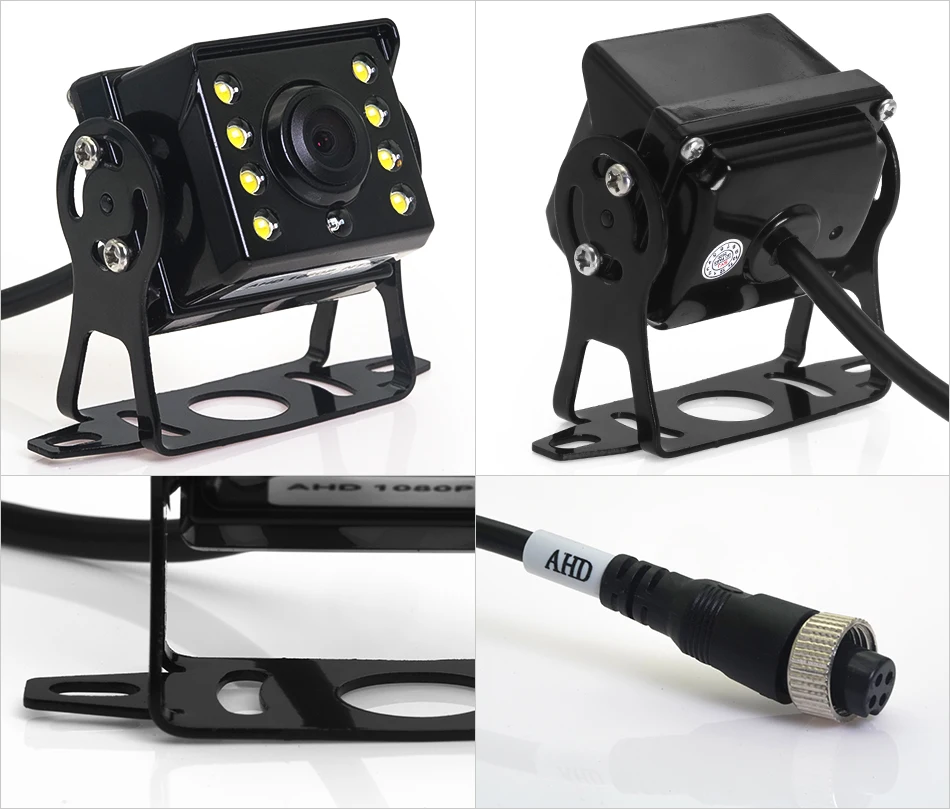

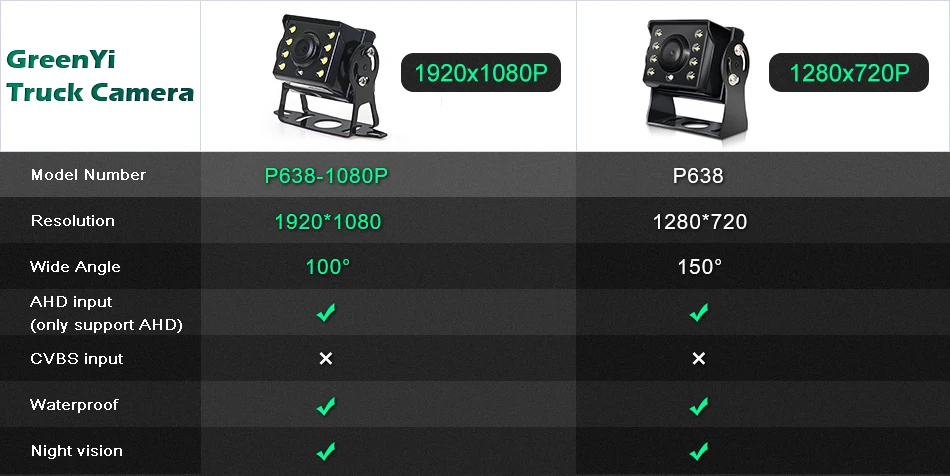

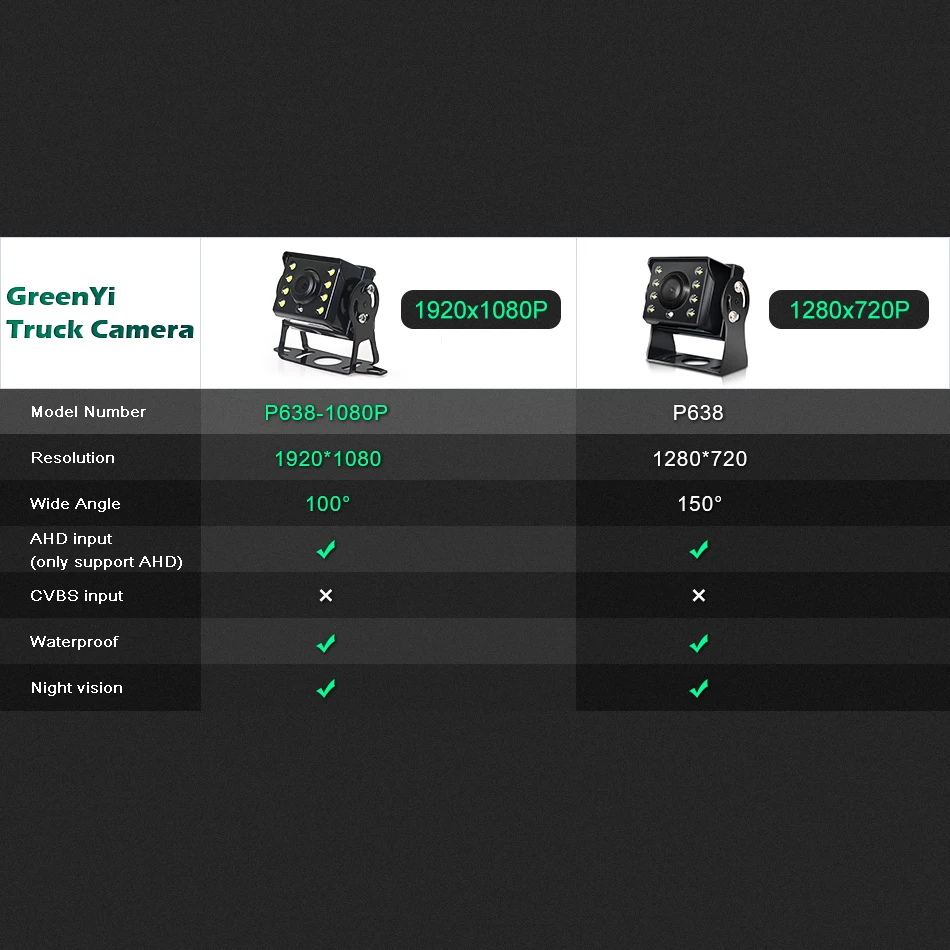

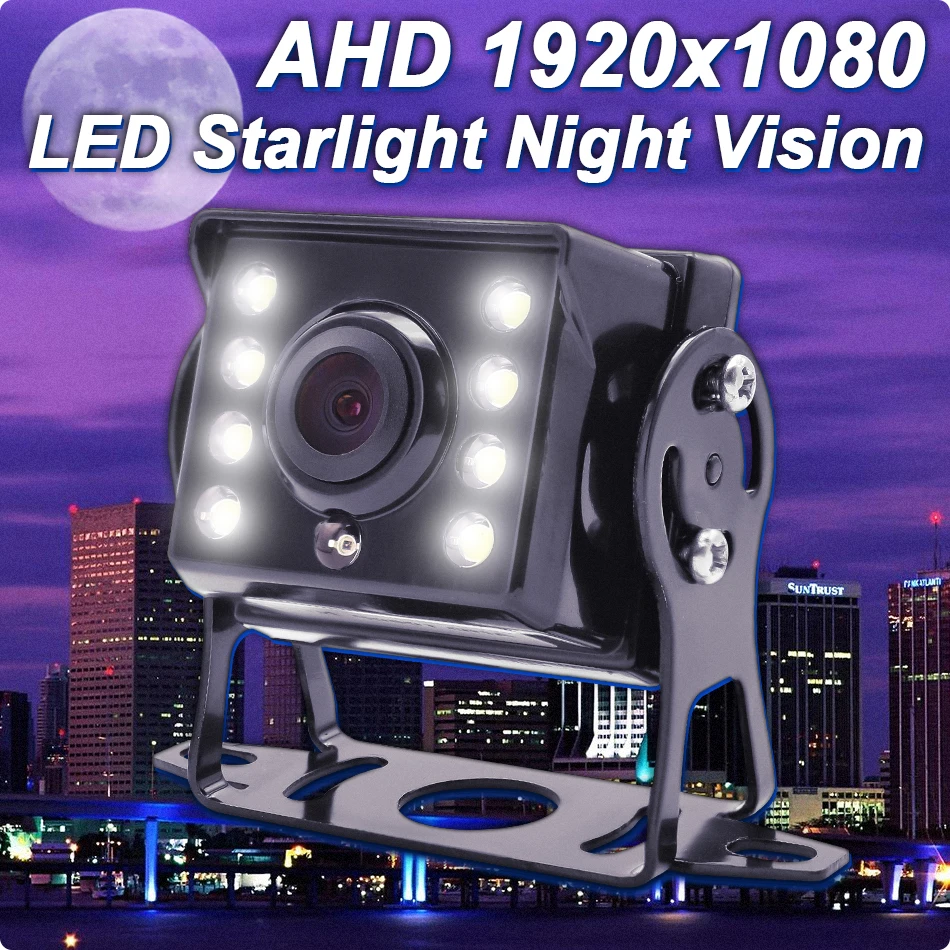

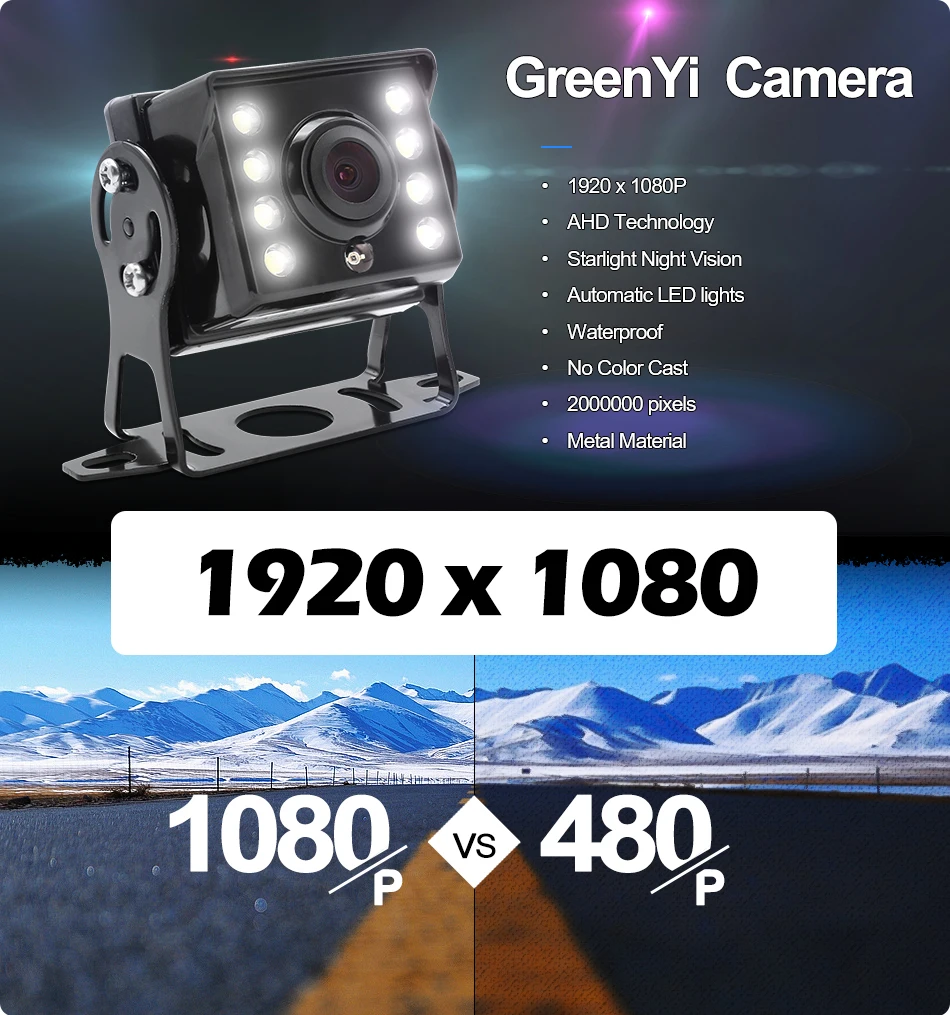

AHD Car Camera:

Sensitive components: 1/4 inch OV9712
Effective pixels: 1920×1080P
Signal format: PAL/NTSC
Image horizontal resolution: 130W pixels
Video output: AHD VIDEO (720P)
Night Vision: Starlight Night Vision. The visible distance is greater than 20 meters.
Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation .
Exposure method: PAL: 1/50~/100000 seconds NTSC: 1/60~1/10000 seconds can be set
Lens: 14/16MM
Low illumination: 0.01Lux
Signal to noise ratio: ≥69dB
Working power supply: DC12V-24V
Working temperature: -20 ° C ~ +50 ° C
Maximum power: 3W
Tips: We send the LED rear view camera by default. If you need a front view camera or don't need an LED, please contact us.

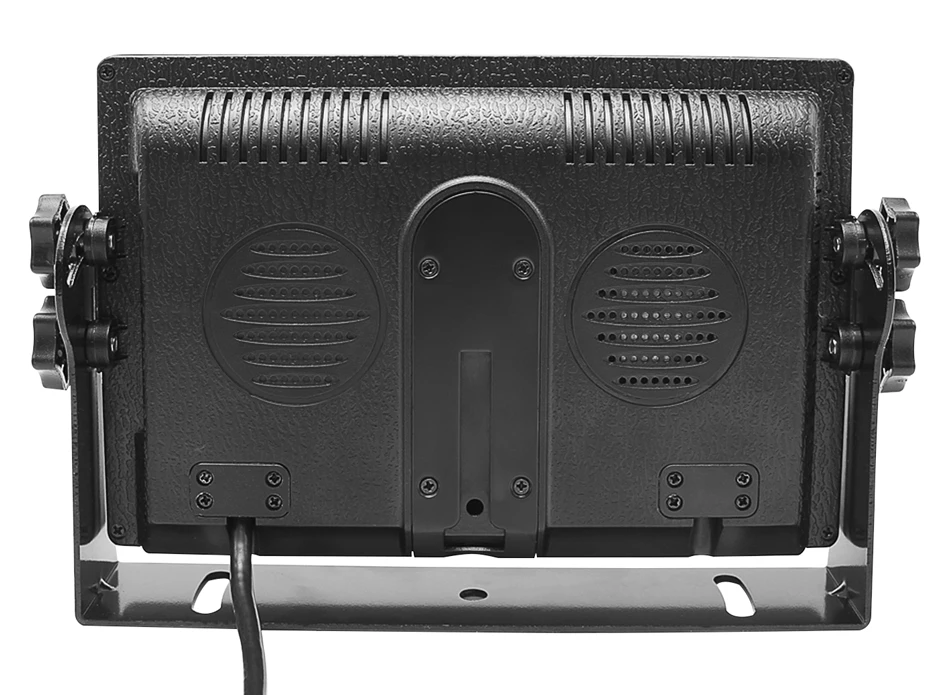

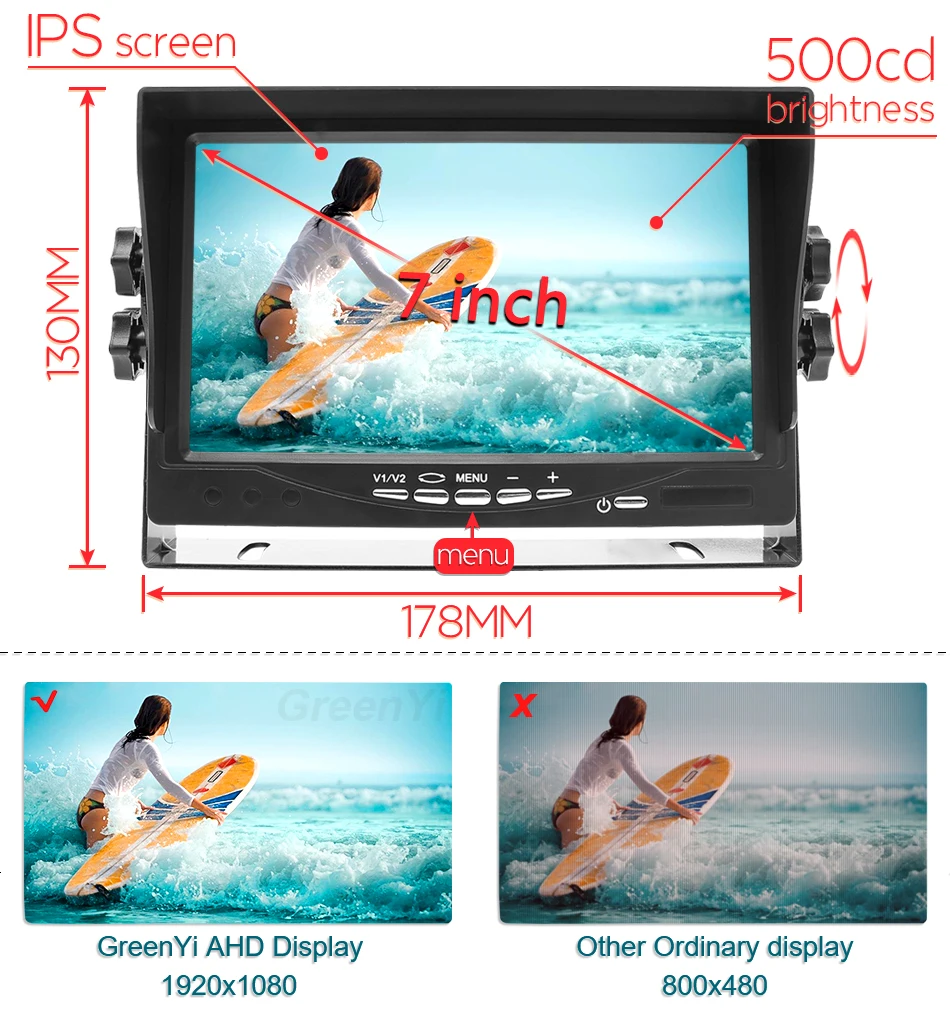

AHD Car Monitor:

Video signal: Supports AHD and CVBS signals.
Screen size: 7-inch screen
Format: 16:9
Screen brightness: 500CD / M2
Effective pixels of the screen: 1024*600
IPS Screen: Support
Signal format: PAL / NTSC
Night vision image: automatic gain control, automatic white balance, automatic backlight compensation.
Power supply voltage: 12V-30V
Power consumption: <= 6W

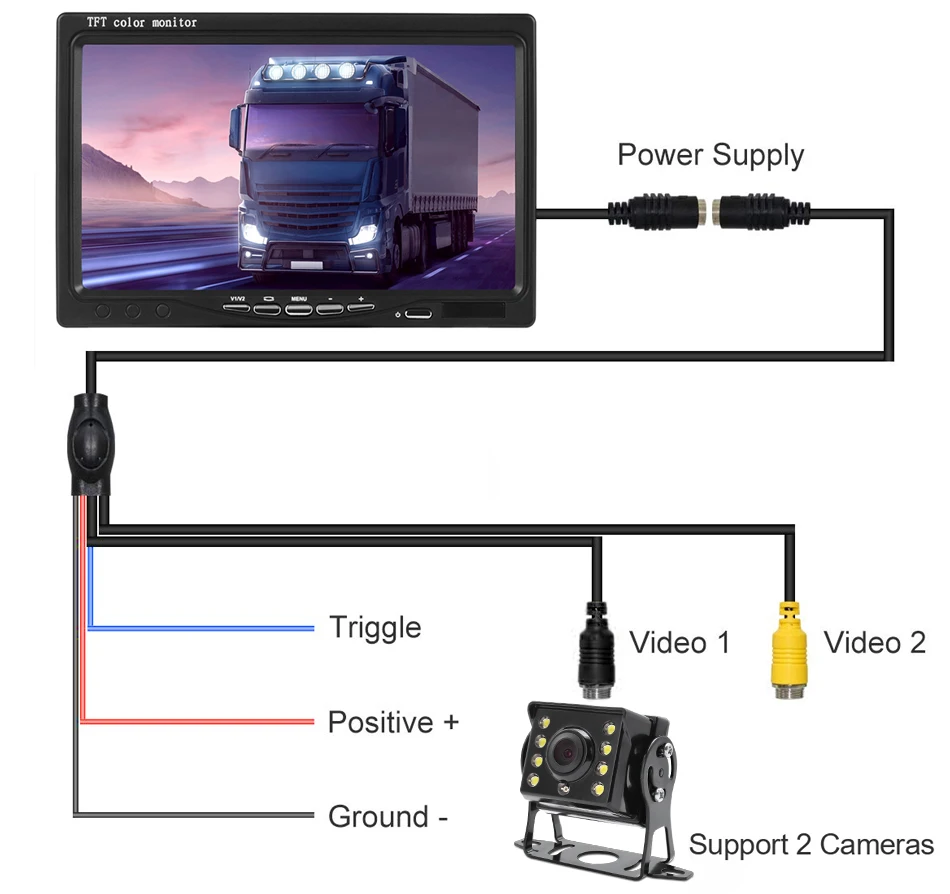

Installation Guide:
