Specification

Model: D400
Size: 12 inch
Memory card: Class 10 TF card(8-256GB)
Video resolution: 3840×2160(4K) & 1920x1080P
Video Encode: H264/ H265
GPS Module Included
Camera Lens: Sony IMX 415
Time-Lapse : Off/ 1S/ 2S/ 3S
Parking Guard: Off/ Low/ Middle/ High
Screen Saver: Support to set the time when the screen turns off automatically
Frequency: 50HZ/ 60HZ
Key sound: ON/ OFF
Boot sound: ON/ OFF
Speaker Sound: Mute/ Low/ Middle/ High
G-sensor: Off/ Low/ Middle/ High
3 options of sensitivity Lens: 8M pixels,170 degree HD wide angle Seamless video: No interrupt video
Loop video: Optional 1/2/3/5 min, new file auto overwrites old file when card is full.
Aperture: F2.0
Button Sound: Turn on/off
Date/ Time: Support
2 split view display simultaneously: Support
Battery: Build-in lithium polymer battery
Car USB power: 5V
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Installation type: Rearview mirror Camera
Urgent Video Mode: Support locking emergency video.
Video Playback on the Mirror: Front urgent Video, Front Ordinary Video, Rear Ordinary Video, Rear Urgent Video
Photo Playback on the Mirror: Front Photo/ Rear photo.
Voice Control: Support English Voice Control


Application: 4K Camera, Streaming media rearview, Excellent night vision, Reversing video, 24h Parking monitor, Collision sensor, Front and rear dual video, Loop recording, Adjustabl view angle, Special mounting holder

The best quality materials, the best 4K camera.

The camera's motherboard, lens, and chip all affect the camera's picture and video quality. The materials we use are the best. For the same 4K camera, the quality gap between ours and other brands is also very large.
We bought 4K cameras from other brands for comparison. Although the appearance is the same, the difference in camera image quality is very obvious.

Different Language Manual: English, French, German, Italian, Japanese, Korean, Polish, Russian, Spanish, Thai ( We will add more language later)

According to the buyer's suggestion, we made a new manual. According to your country, I will add a manual in your language to the package. We now have Different Language Manual: English, French, German, Italian, Japanese, Korean, Polish, Russian, Spanish, Thai manual, the manual will introduce the function keys and icons of the menu, the operating instructions, there will be installation instructions and pictures, if you need a PDF file of the manual, you can contact customer service, if you have any questions, you can also contact customer service .

12 Inch Full View Mirror

Full View Touch Screen provides crystal image without any delay. Very clear and smooth images display as like a stream flowing on the excellent WDR and Auto Adjusting Brightness Streaming Mirror.

Huawei Hisilicon Chip

Using Huawei HiSilicon 3559v200 chip, the operation is smoother, the menu response speed is more sensitive, the shooting does not drop frames, the system is more stable, and the service life is long.

Intelligent anti-shake

When recording 4K video, Hi3559V200 chip supports hardened 6-Dof digital anti-shake, the picture is clearer and more complete.

Newest SONY IMX 415 Lens

Using the latest SONY IMX 415 lens, it is clearer than IMX 335, the color of the recorded video is more realistic, and the night vision effect is better.

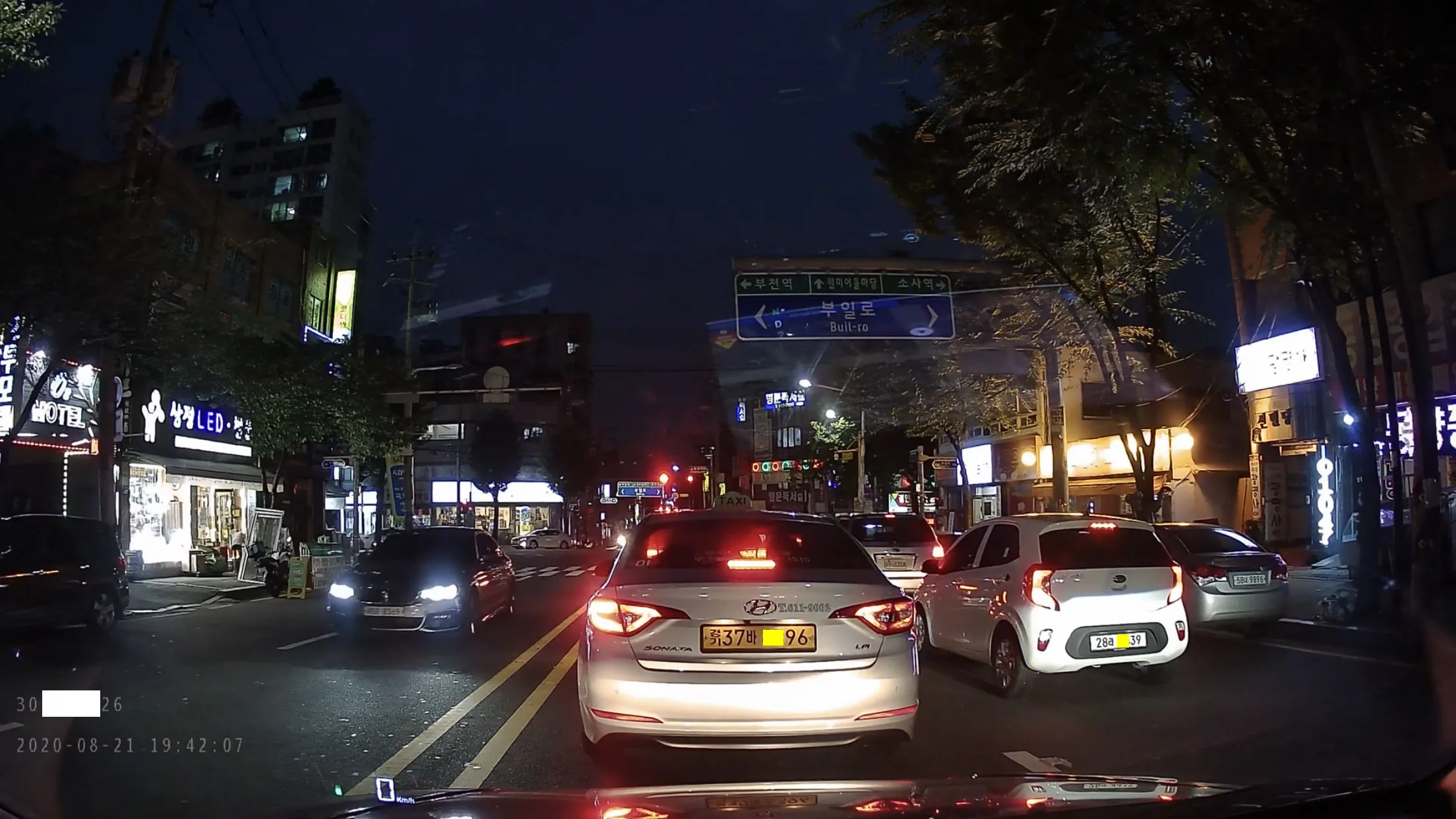

4K 3840×2160P Ultra HD

With 4K 3840×2160 Ultra HD resolution, With the high-sensitivity sensor, this car camera can perform the higher quality and vivid images and videos. it can sense the surrounding environment and delicately handle complex light. With fast image capture rate and image processing capability, it can enhance image clarity to perform more naturally vivid and lifelike image quality.

Smart Voice Commands

Smart voice recognition, voice control recorder: turn on or off the screen, turn on or off voice, start recording, lock video, front camera image, rear camera image, front and rear camera image, turn on or off WIFI. (Now only Support English voice control)

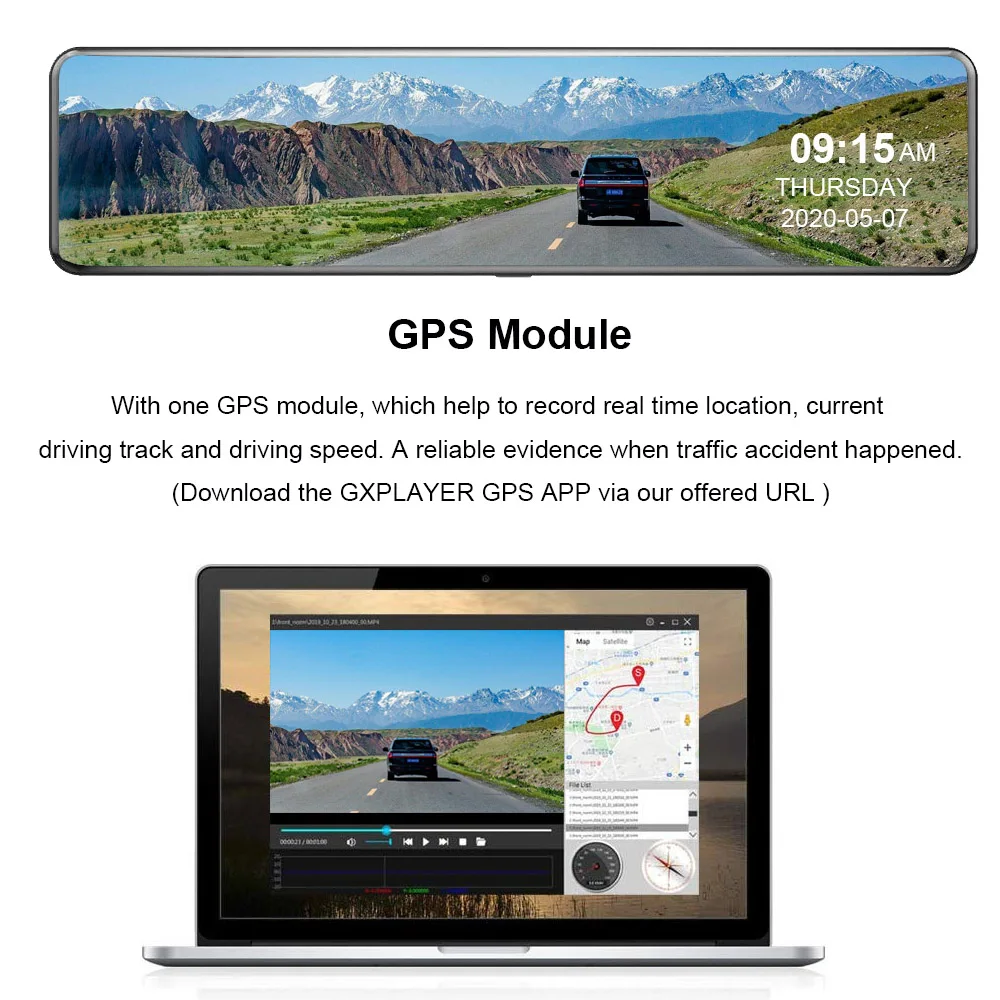

GPS Module Included

Equipped with a GPS antenna and you can see the real-time speed and vehicle trajectory, which help to record real time location, current driving track and driving speed. A reliable evidence when traffic accident happened.

Attention: Download the GXPLAYER GPS APP via our offered URL. After the installation is successful, you can play video on the PC side through this GXPLAYER APP.

After you plug in the GPS antenna, please open the menu and find "Time Zone", and adjust the time zone according to your country.

Overspeed Prompt

Overspeed settings: 49MP/H, 55MP/H, 62MP/H, 74MP/H, 80MP/H, 86MP/H, 93MP/H, 99MP/H. You can set the speed reminder in the menu, when the speed exceeds this standard, The machine will emit a warning beep sound (just a simple beep sound, not a voice reminder).

( Attention: After you insert the GPS antenna, please open the menu to find the speed unit, please select "MP/H", otherwise the speed will not be displayed.）

1080P Rear Camera

Adjust the screen by your finger

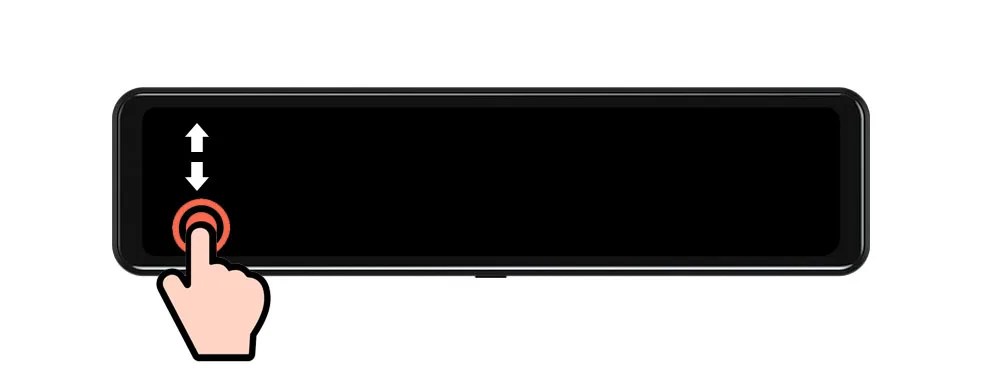

Swipe up and down on the left side of the screen to adjust the viewing angle

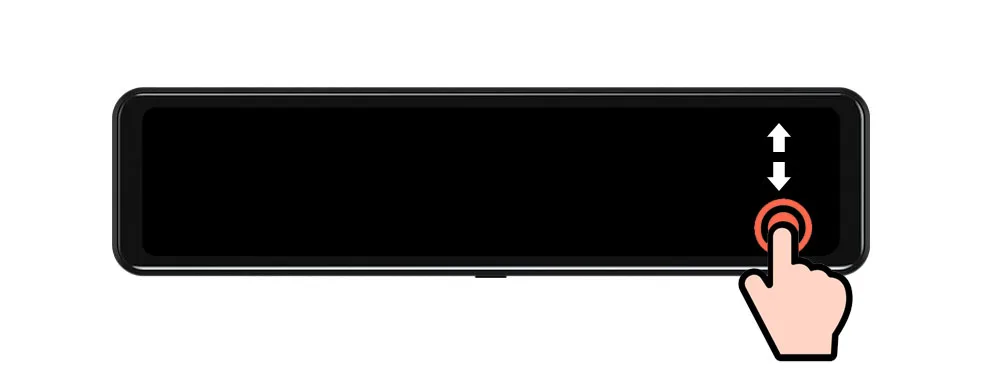

Swipe up and down on the right side of the screen to adjust the viewing angle

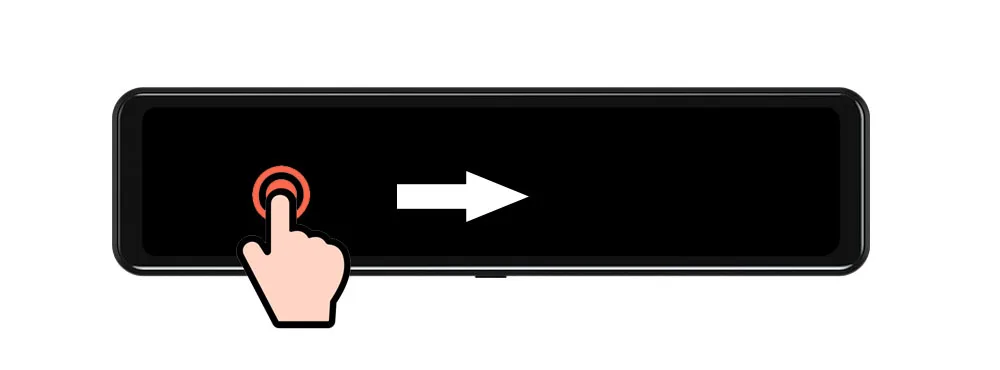

Swipe right to switch front and rear cameras

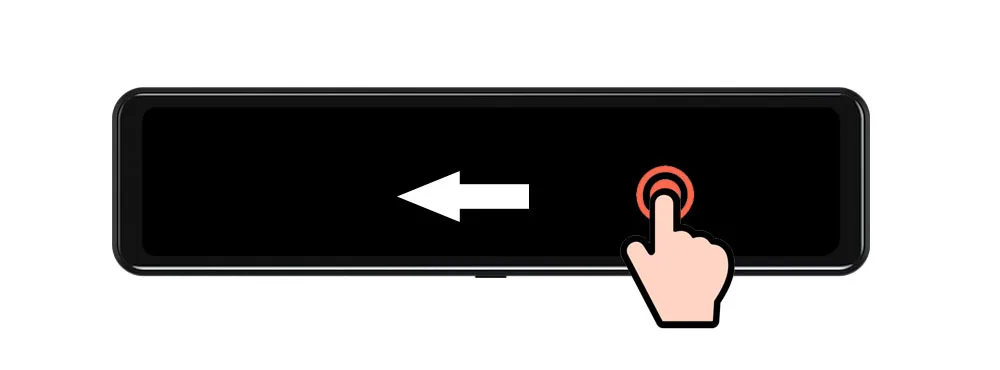

Swipe left to Watch recorded videos and pictures taken on the recorder

Rear View Camera

Smart rear view angle switch between driving and parking. You could see all further vehicles and objects clearly behind you while real-time driving and it will lower the rear view angle automatically to give a closer backup image when parking.

Special Mount for camera (You can order it directly, all the bracket price is same. We will write the bracket number for you)

Two Installtion Methods：
Method1: Rubble Straps installation Fix our car dvr on your original rearview mirror (No need remove the car mirror); Method2: Special Mount Installation Remove your car original mirror and mirror holder and then install the car dvr instead. ( Attention: Please remarks model and year When placing an order. Because we are custom-made brackets, you'd better provide a picture of your original car mirror holder)↓↓↓

The DVR Holder for Car DVRs Mounts Rearview Mirror DVR Holder Car GPS Recorder Mount Bracket We have about 200 kinds of brackets. For Ford, Mazda, Volvo, SUZUKI, LADA, BUICK, CHEVRDLET, OPEL, Mercedes-Benz, B.M.W, VOLKSWAGEN, Audi, Skoda, PEUGEOT-CITROEN, PEUGEOT, RENAULT, NISSAN, TOYOTA, LEXUS, HONDA, HYUNDAI, KIA, Mitsubishi, Smart, MORGAN and other most cars.

The following are some mounts of popular models. If you are not sure about the mount number, you can contact our customer service and they will find the most suitable mount for you.

The following are some mounts of popular models. If you are not sure about the mount number, you can contact our customer service and they will find the most suitable mount for you.

Audi: 3A, 10, 22, 55, 98, 141
Mercedes: 12, 37, 45, 49, 50, 63, 68, 86, 101, 115, 135, 138, 147, 157, 200, 202,
SMART: 131, 99
Tesla: 65, 169, 207, 208, 209, 210,
BYD: 12, 25, 26, 85, 151, 174, 176, 180, 93, 185, 193, 43, 204,
Buick: 1, 4, 14, 118
Pentium: 1, 3A, 118, 203,
BMW: 11, 23, 32, 106, 119, 130,156, 161, 167, 178, 187, 196
Mini: 23, 32, 11
Peugeot: 1, 3B, 12, 58, 75, 139, 142, 155
Porsche: 3A, 11, 30, 40, 117
Bentley: 40, 103, 141, 10
Baojun: 6, 192, 194, 186, 214, 215
Honda: 1, 2, 8, 12, 61, 149, 14, 190, 201,
Volkswagen: 3A, 24, 27, 35, 40, 44, 55, 60, 67, 103, 105, 113, 120, 123, 183,
Dodge: 1, 53
Daihatsu: 64
Toyota: 1, 2, 8, 14, 25, 29, 80, 107, 118, 129, 136, 190, 213,
Fiat: 14, 53, 62, 3B
Ford: 1, 3B, 14, 47, 48, 100, 158, 73
GMC: 1, 118
Haval: 1, 46, 124, 14
Jaguar: 11, 31, 79, 160, 96
JEEP: 1, 53, 70, 87, 102, 125, 177, 179, 145, 184
Cadillac: 1, 15, 118
Renault: 1, 12, 13, 21, 66, 108
Land Rover: 1, 11, 31, 34, 79, 96, 160
Lincoln: 1, 47, 100
Lexus： 1, 107, 118, 136, 171
Suzuki ：1, 2, 9, 59, 110, 170, 167, 20
Rolls-Royce: 156, 23, 119, 11
Lamborghini: 3A, 22, 141, 10
Maserati: 53, 126, 140
Mazda: 1, 28, 90, 175, 48
Opel: 1, 7
Acura: 1, 149, 162, 121, 8, 12
Chery: 1, 2, 6, 28, 78, 88, 104, 41
Kia: 1, 7, 14, 118
Nissan: 1, 8, 14, 38, 122, 2
Mitsubishi: 1, 2, 4, 72, 57, 190, 191, 107, 118
Subaru: 1, 2, 20, 97
Volvo: 33, 36, 52, 65, 76, 112, 132, 48
Chevrolet: 1, 4, 6, 118, 164, 14, 12
Hyundai : 1, 7, 14, 118, 167
Citroen: 3B, 12, 33, 58, 75, 150, 139

Parking Line

Smart rear view angle switch between driving and parking. You could see all further vehicles and objects clearly behind you while real-time driving and it will lower the rear view angle automatically to give a closer backup image when parking.

24H Parking Monitor

When someone near your car or vehicle starts to move, Automatically turn on and start recording when detects any impact or collision,the device automatically automatically recording for few seconds,make sure 24hr Parking Guard.

Attention: It should be connected by a hardwire, please buy our 24h parking monitor cable

24H Parking Monitor Cable Connection

Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the yellow cable to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the red line to the fuse box ACC interface.

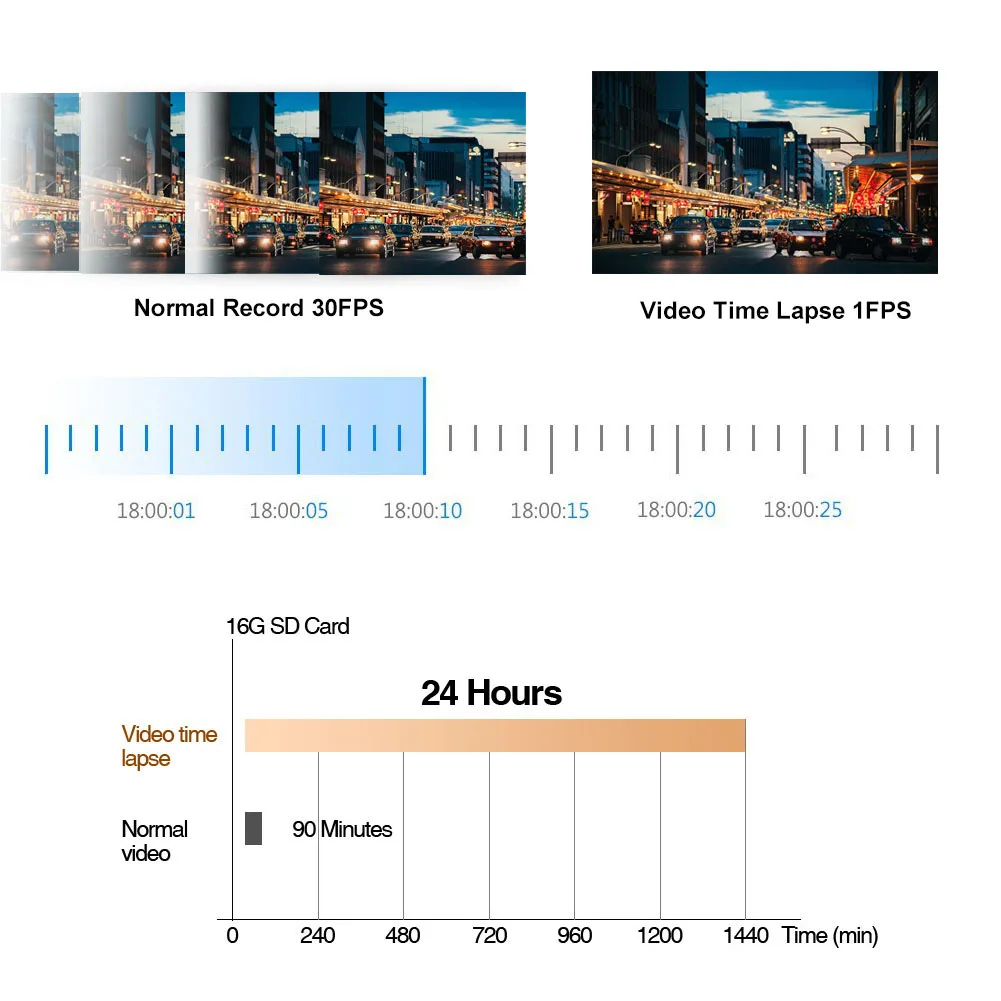

Time-lapse Video Function

Use the buck line to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the buck line to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the yellow cable to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the red line to the fuse box ACC interface.

Loop Recording + G-sensor

G-sensor - Powered automatic video recording and video file locking when a collision or crash is detected. The sensitivity of the G-sensor can be set to different levels.
Loop Recording Function- Ensures continuous recording without missing a second,record automatically during vehicle ignition, switch off automatically with ignition off to get you free from the hands operation.
