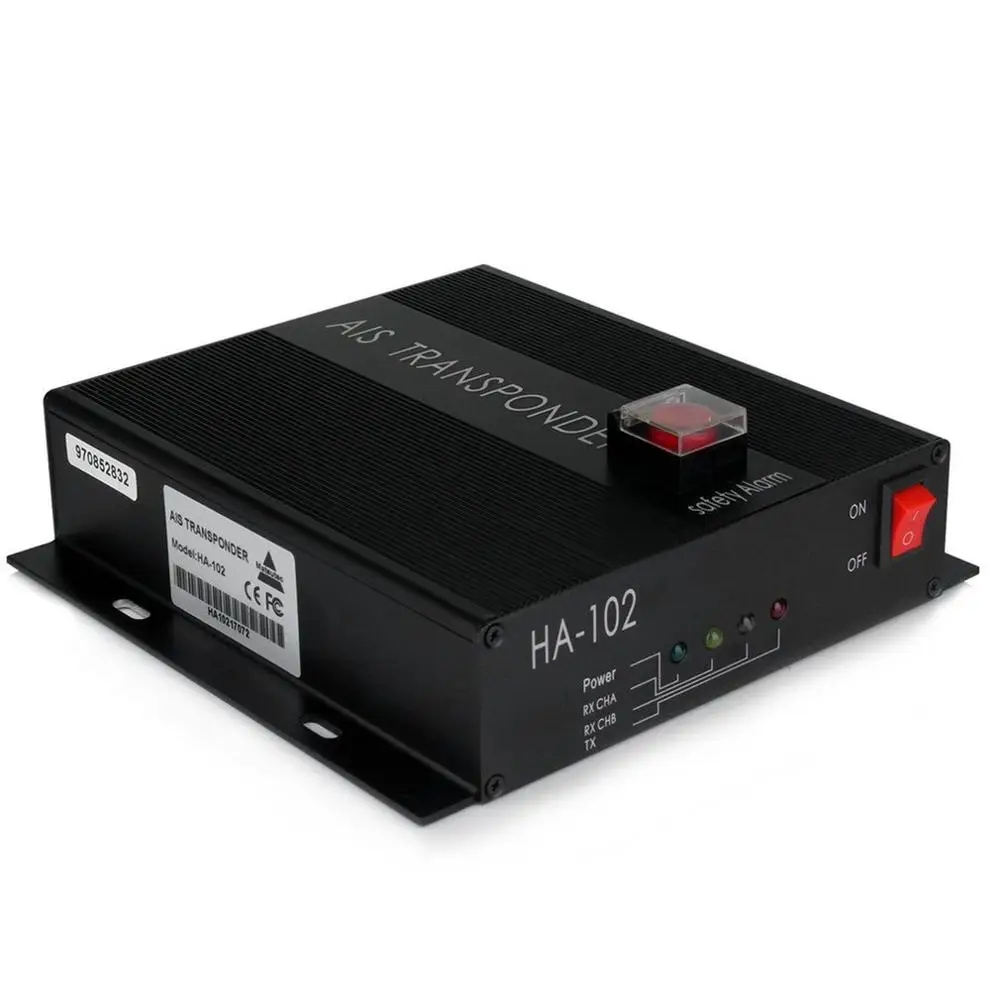

Matsutec HA-102 Marine AIS receiver and transmitter system CLASS B AIS Transponder Dual Channel Function CSTDMA Function

Features:



1.Electrical function is accordance with IEC 62297-1.

2.Dual channel function: two TDMA receivers are receiving datum in two independent channel at the same time, and one TDMA transmitter is transmitting in two independent channels alternately.

3.CSTDMA function can avoid and solve communication conflict.

4.Transponder has external serial data interface(RS-422, rs-232).

5.Transmit and receive safety message, and equipped with "SOS" safety button.

6.Support three operation mode: carrier-sense mode, assigned mode and polled mode.

7.Internal GPS receiver, as data source for position, COG and SOG.

8.SOG can be connected to all devices compatible to GPS and PC, PDA, ECDIS, RADAR, etc.

9.Support DSC reception based on TDMA channel.

10.Alarm and indication (via LED) FOR power, error, time-out, status.













Descriptions:

1.Dual Channel Function CSTDMA Function.

2.CLASS B AIS Transponder.

3.Marine AIS receiver and transmitter system.







Specifications:



Brand: Matsutec

Model: HA-102

Color: black

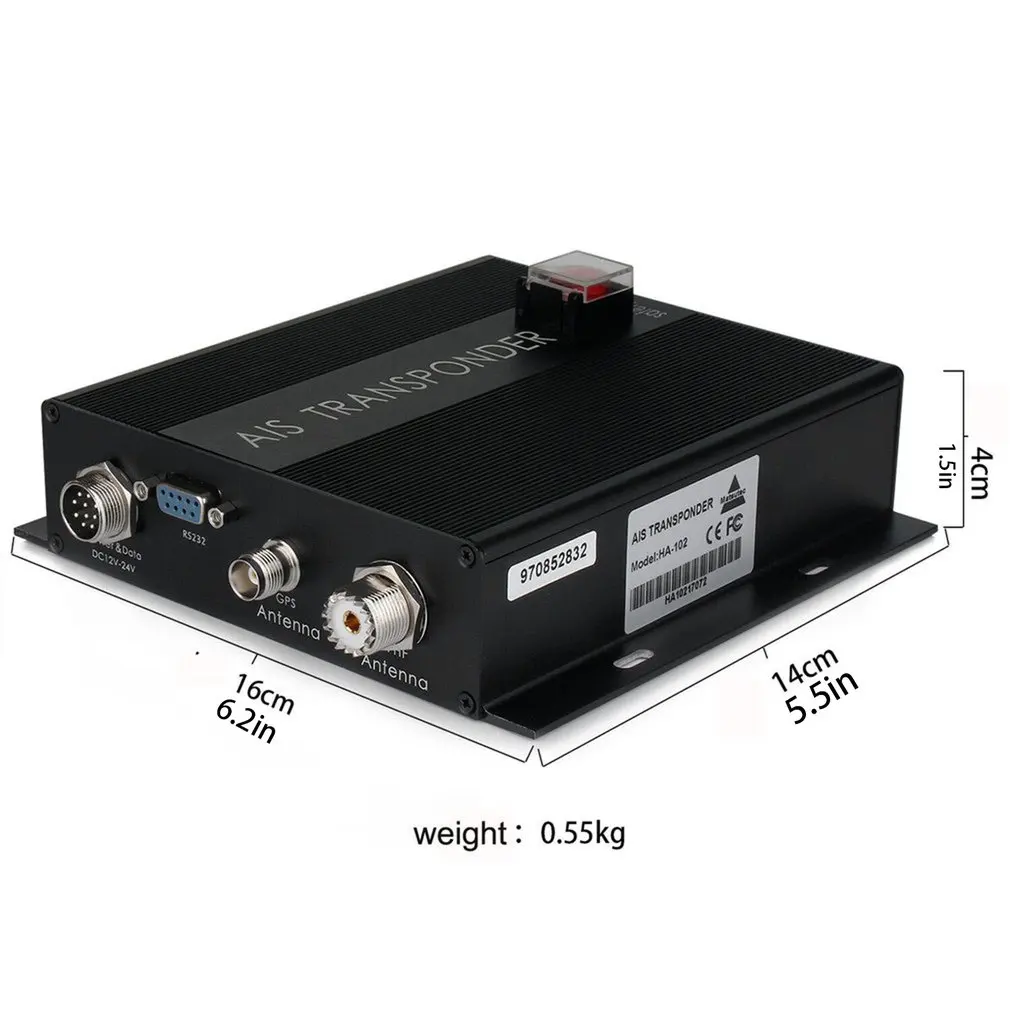

Size: 16*14*4cm

Standard: IEC 62297-1

               IEC 61162-1

               IEC 60945-2002



VHF Receiver:

Frequency range: 156.025 MHZ-162.025 MHZ

Channel bandwidth: 25KHZ

Number of AIS Receiver: 2 Receiver(one time share between AIS /DSC)1 Transmitter

CH-1: Default CH 87B(161.975MHZ)

CH-2: Default CH 88B(162.025MHZ)

Number of DSC Receiver: 1(CH 70)

RX DSC: 156.525MHZ

Max. Usable sensitivity: PER<=20% ar -107dbm



VHF Transmitter:

Power output: 2 watt(33dbm+ -1.5db)

Modulation: GMSK/FM

Data rate: 9600bps/per channel

Modulation spectrum: IEC 62287

DSC Receiver:

Modulation: 1300hz/2100hz FSK

Data rate: 1200BPS+ -30PPM

Spurious response rejection: >= 70db for signal @-104 dbm; BER<=1%

Blocking: >= 70db for signal @-104 dbm; BER<=1%



GPS Receiver:

Receiving channels: 12 channels

Acquisition sensitivity: -140 dbm

Tracking sensitivity: -150 dbm

Position Accuracy:<2.5m CEP(GPS) Without SA

Output rate: 1 hz



Power:

Supply voltage: 12V DC (10V-20V)

Power consumption: Less than 10w

Main unit: 4 LED Indicator working Status

               1 ON/OFF Switcher

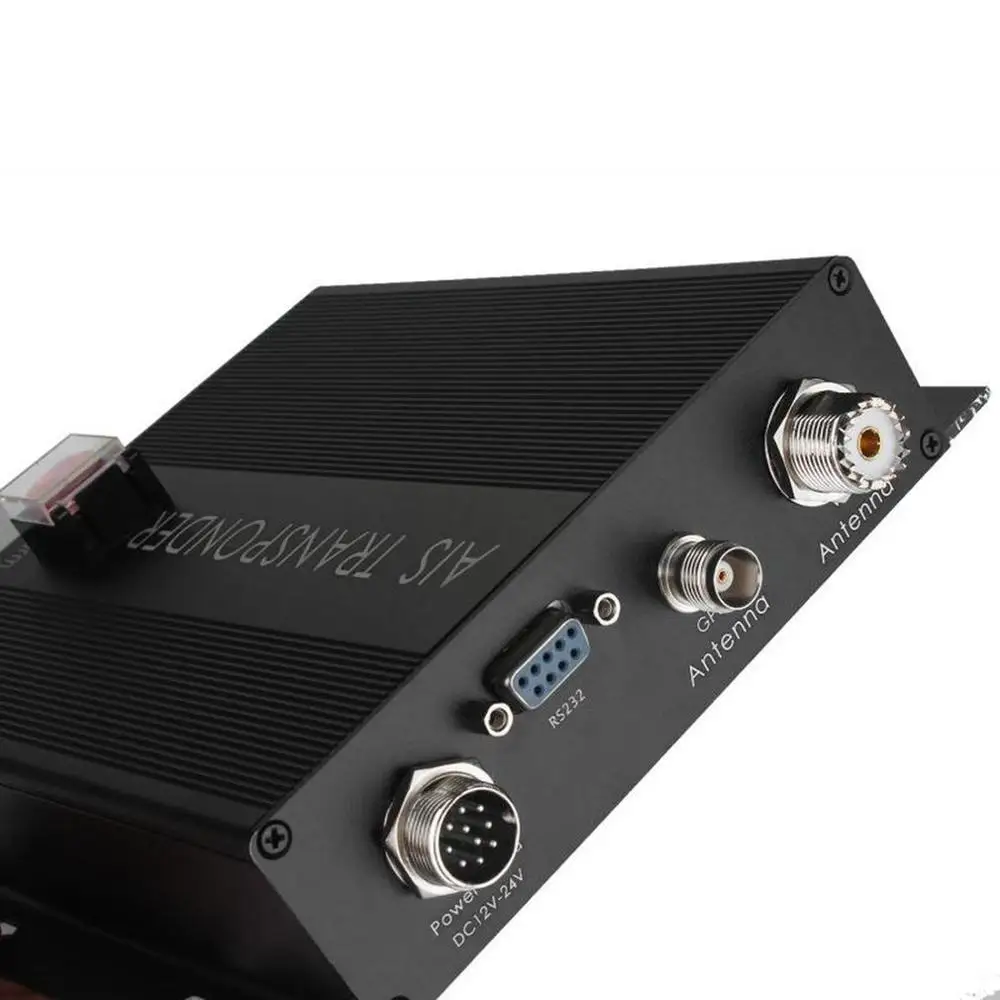

Interface:

Ports: NMEA 0183/RS-422/RS-232

GPS Antenna(optional): Female TNC Connector

VHF Antenna(optional): Female Type M Connector



Environment:

Operating temperature: Antenna: -25°C-70 °C

                                     Others: -15°C-55 °C

Storage Temperature: -25°C-70 °C

Humidity: Operating : 0-95 RH at 40 °C

              GPS Antenna OPERATING: 100% Sealed

              VHF Antenna OPERATING: 100% Sealed

Vibration: IEC 60945

Waterproof: IPX 5

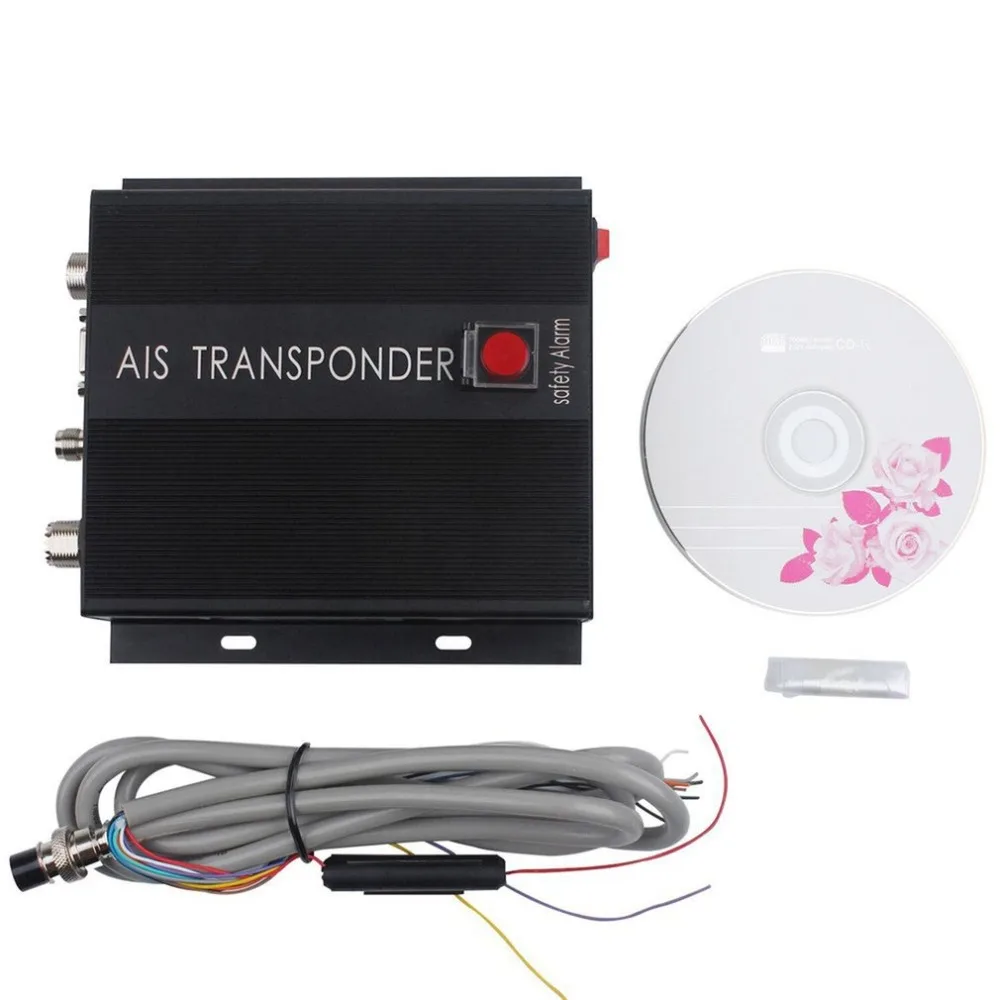

Package Included:

1 x CLASS B AIS Transponder

1 x CD

1 x Cable







Notes:

1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2. Please allow slight dimension difference due to different manual measurement.
