Welcome to SINOSMART

A professional supplier of car in-dash car GPS navigation player, rear view parking camera and DVR. We have after-sales service center in UK and Russia. We can offer mixture orders and big discount for retailers and wholesalers. We work with many regular customers from Europe, South America, Asia and Australia. Welcome to contact us for e-catalog and long-term of cooperation.

Our product warranty is one year and service life time. If you give us 5 star feedback and share photos on aliexpress, we will extend warranty to 2 years.

Please be noted that warranty of the data card is 3 months only.

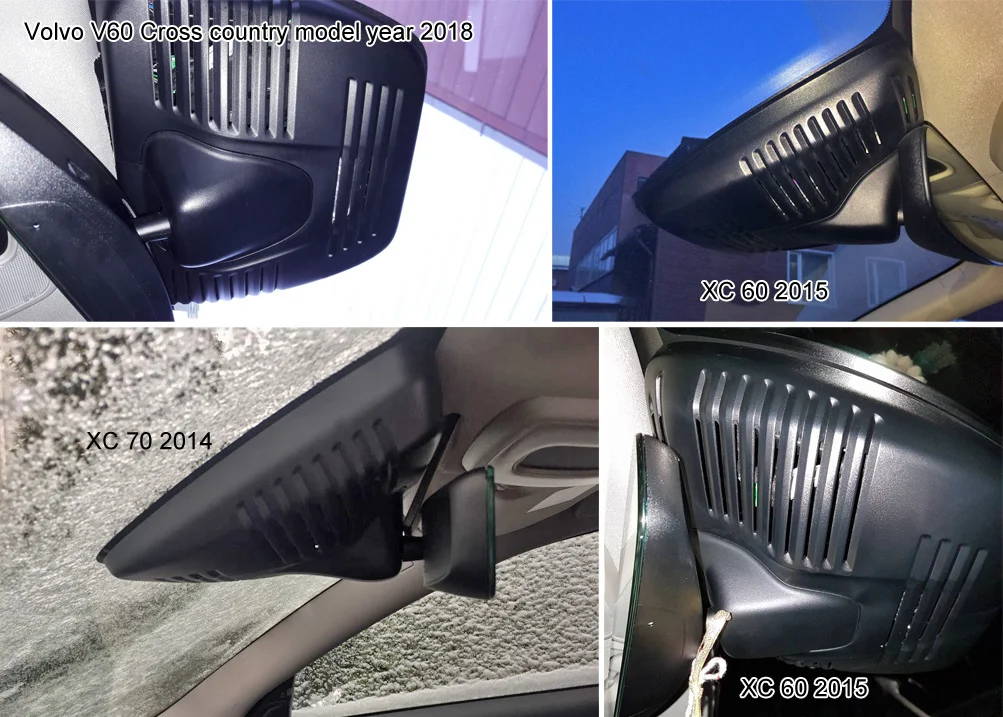

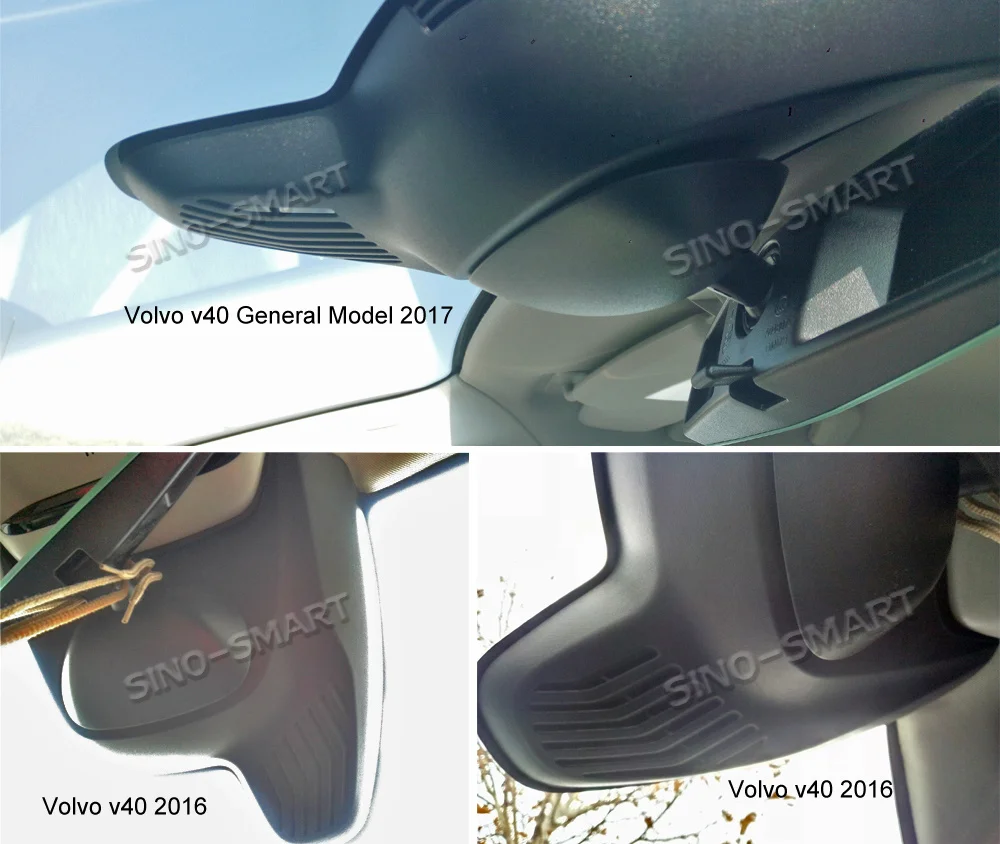

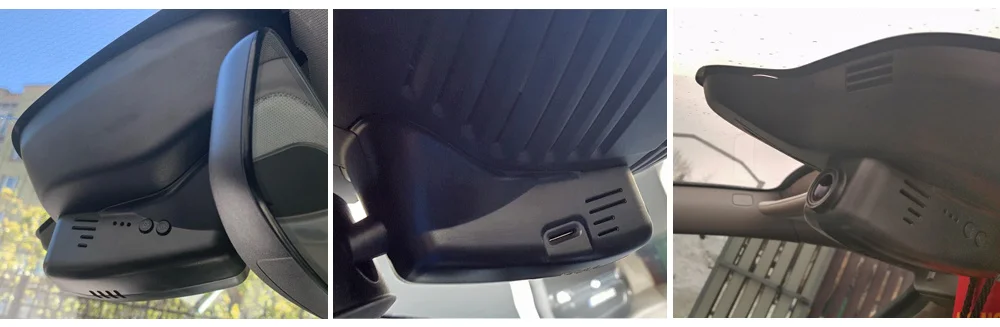

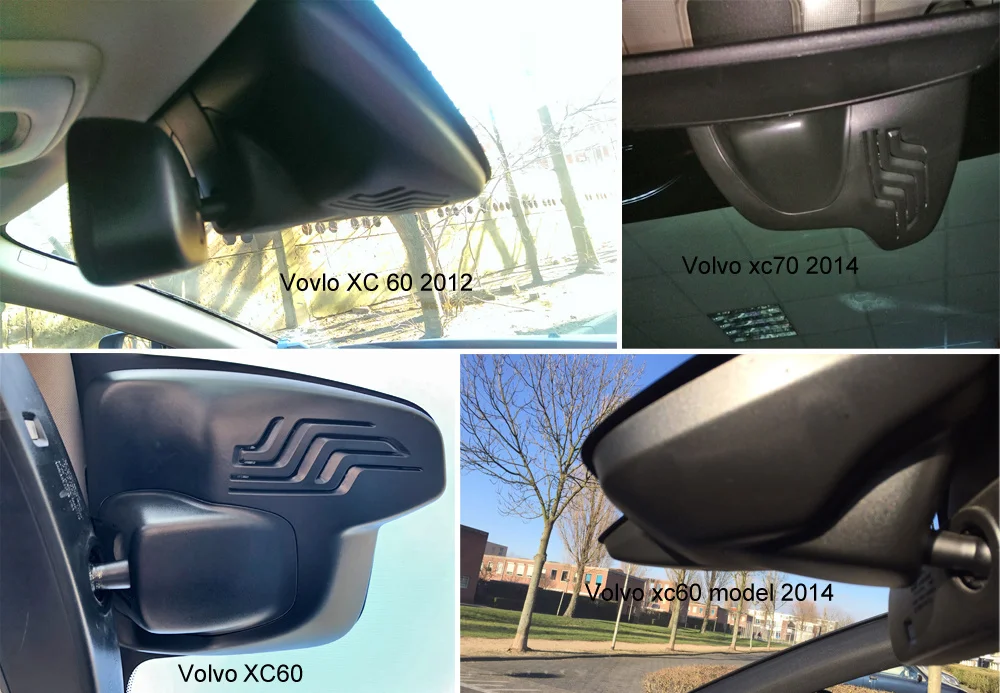

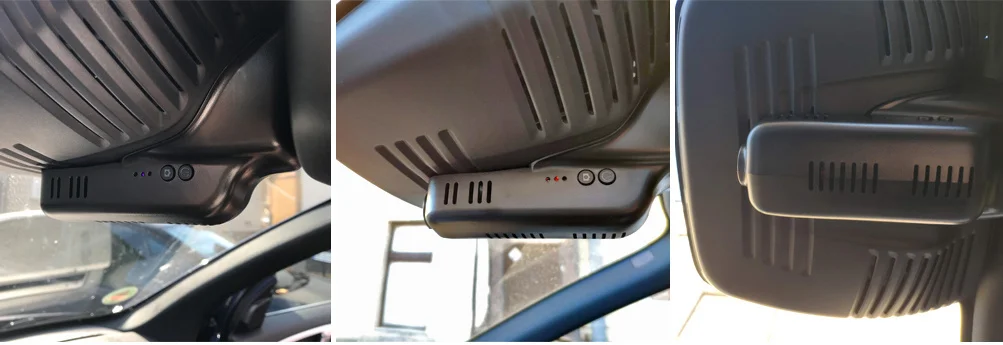

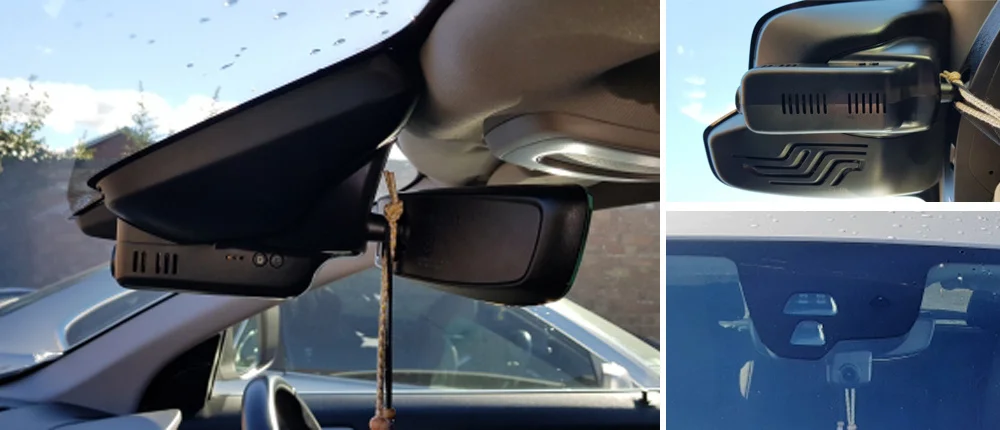

The listed car model name/year just for reference, because the same car models made in different factories/years may have some difference.This model is for car with this kind of mirror(tested by customers), here are photos shared by customers from different countries for your reference. If you are still not sure, please contact us to check before ordering.

WEW01 is for S60 2012 2013 /S60L 2014 2015 /S80L 2015 /V60 2012 to 2016, XC70 East Europe 2015

or later

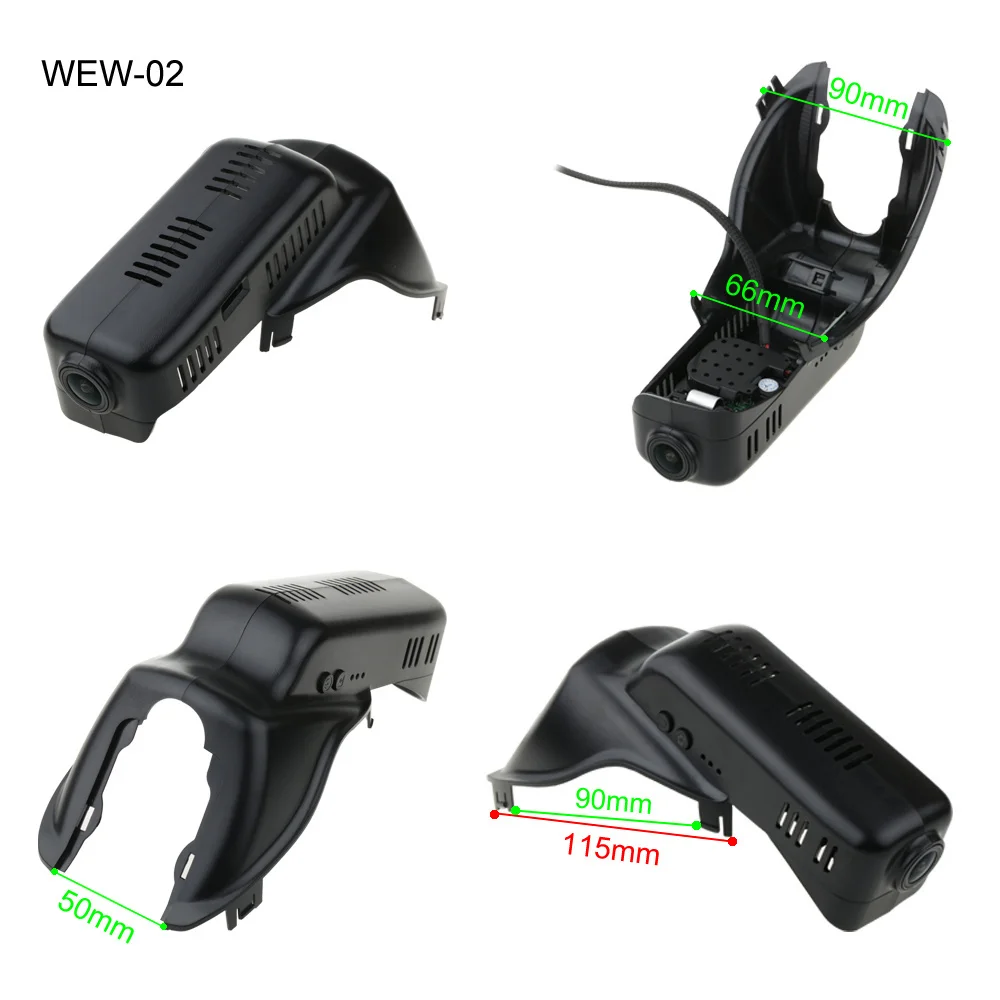

WEW02 is for XC60 low configuration 2012 to 2015

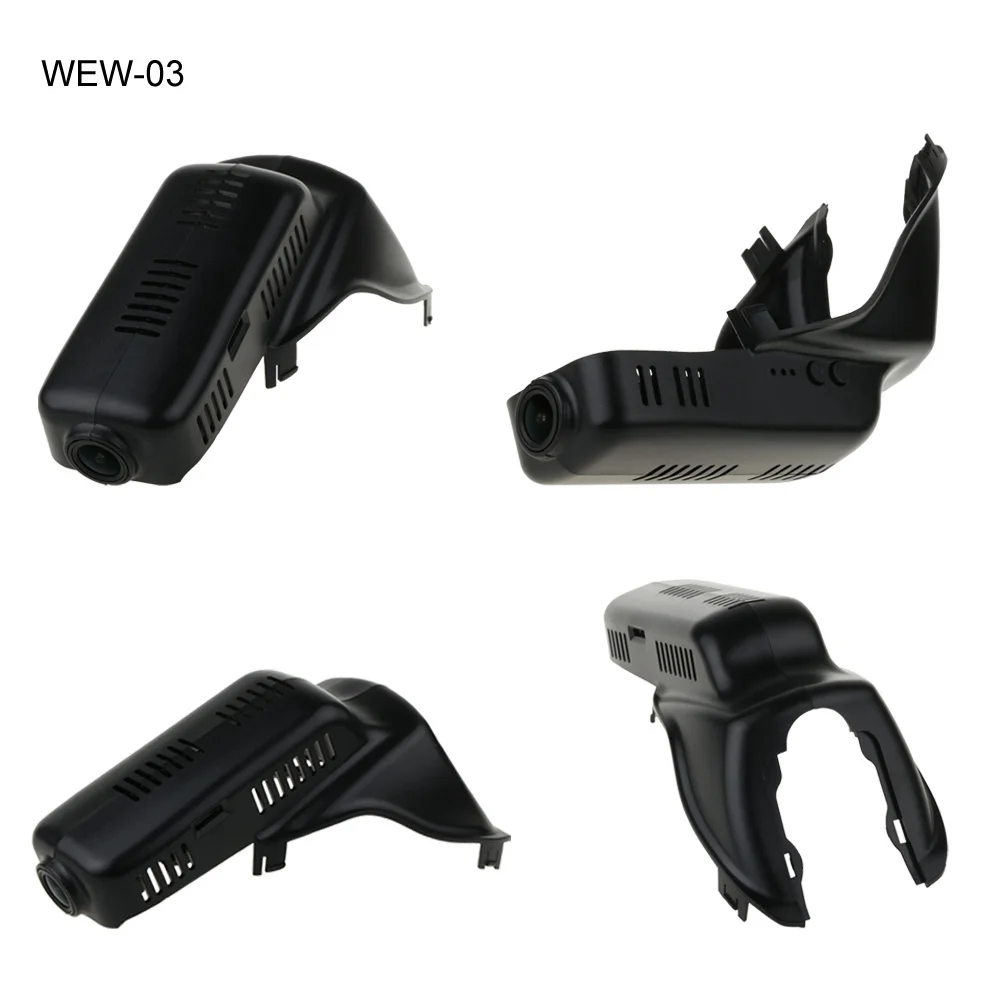

WEW03 is for XC60 Deluxe 2015 or later

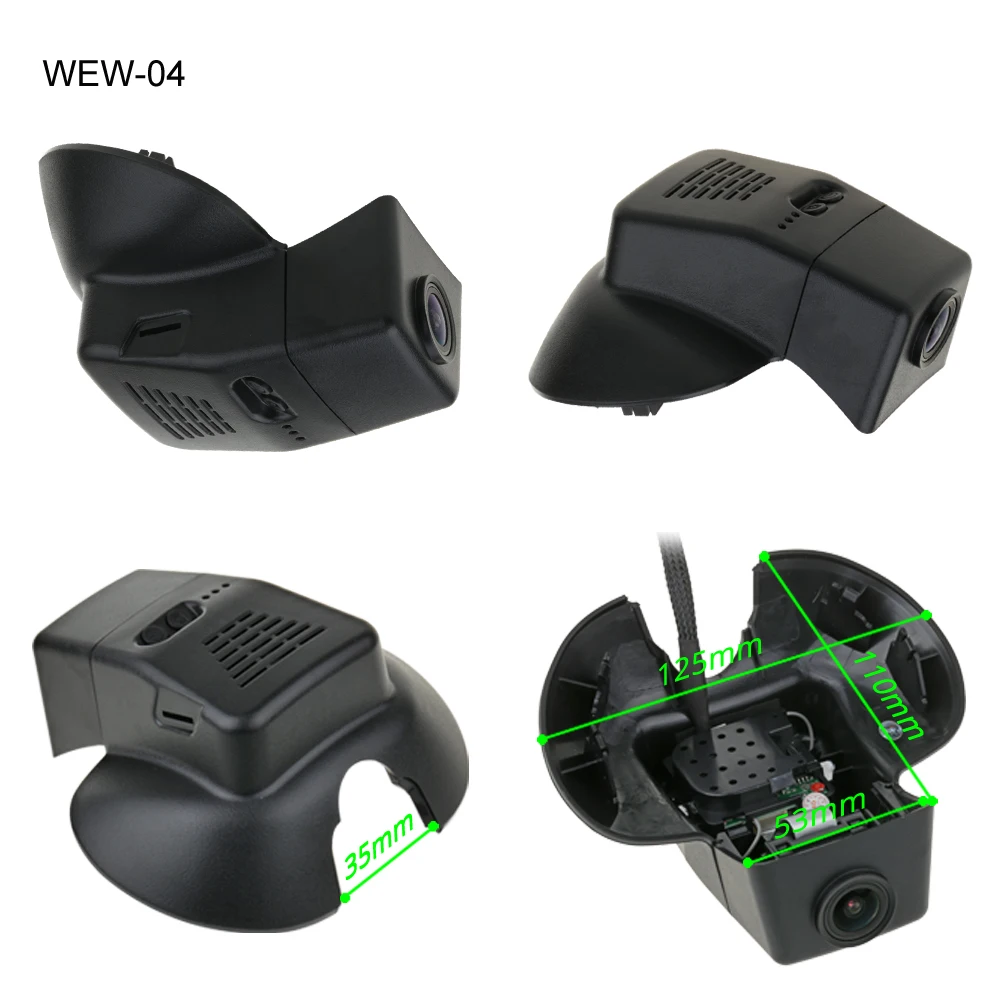

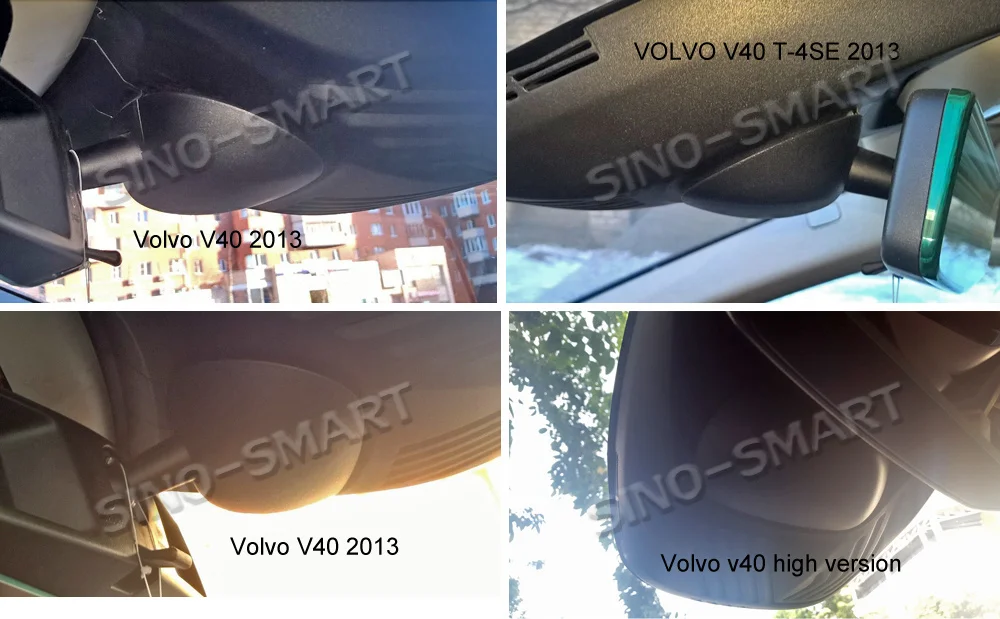

WEW 04 is for V40 2015 or later

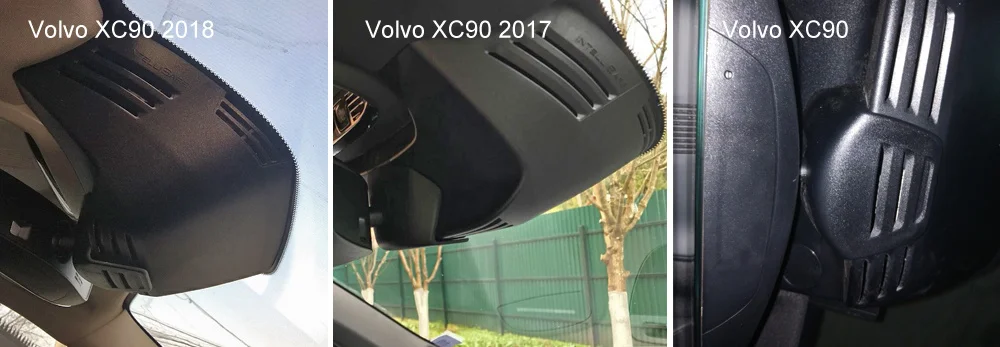

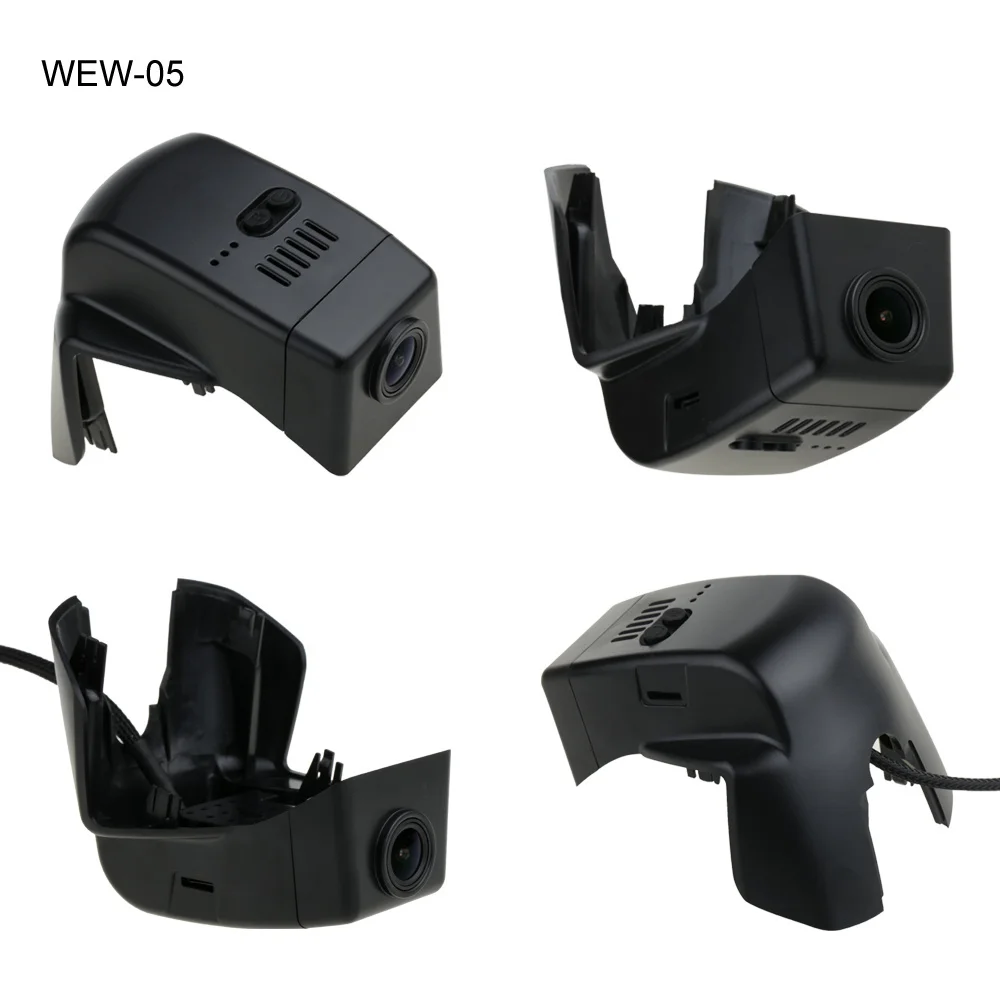

WEW05 is for XC90 2015 2016 2017 2018 2019

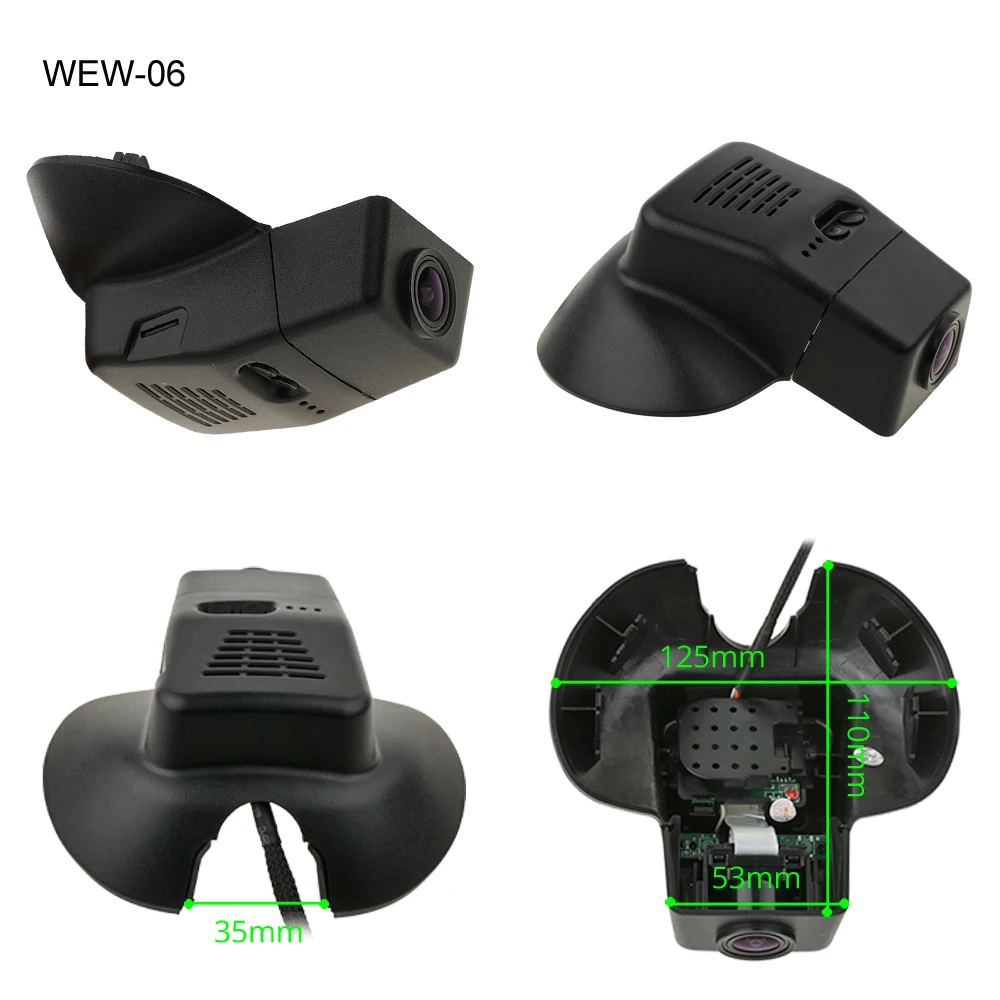

WEW06 is for V40 Deluxe 2015 2016

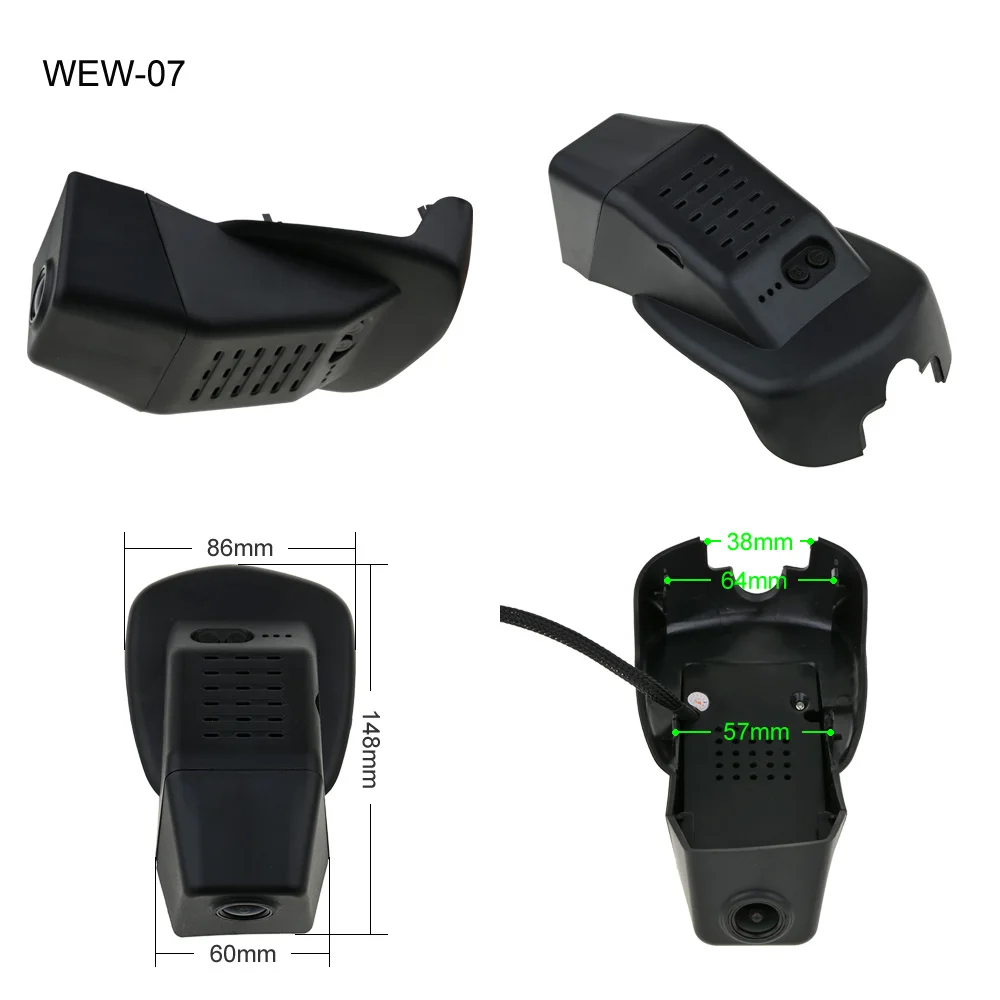

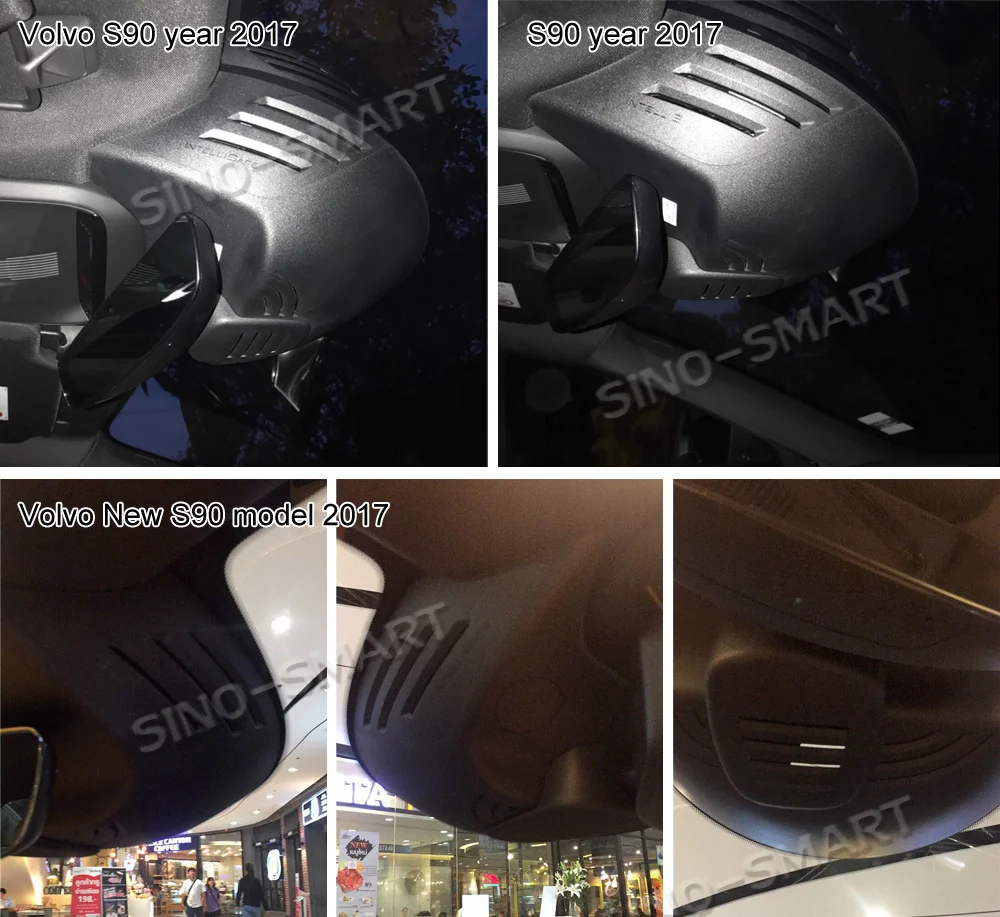

WEW 07 is for XC60 2018, 2019, S90/V90/S90 2017 T4 2.0T, T5 2.0T / V90 CROSS COUNTRY T5 AWD 2017 V60 2019etc.

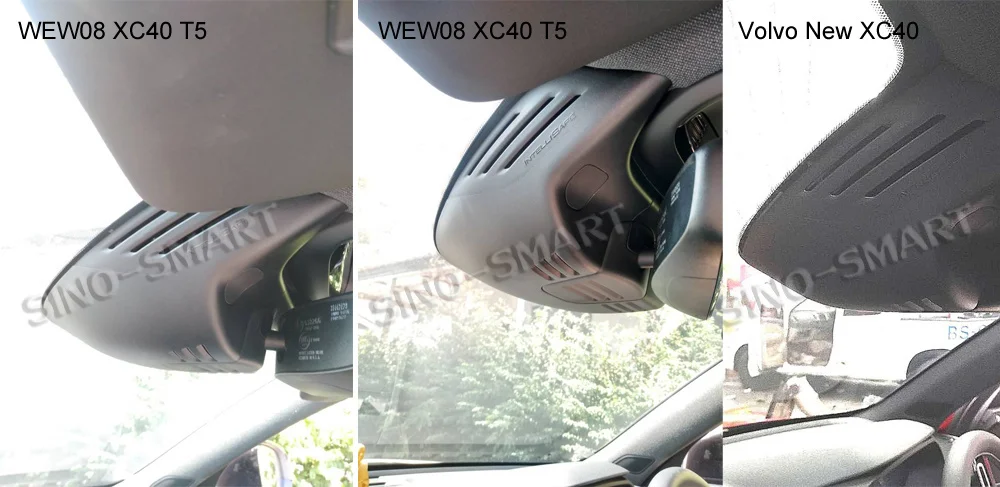

WEW08 is for XC40 2018

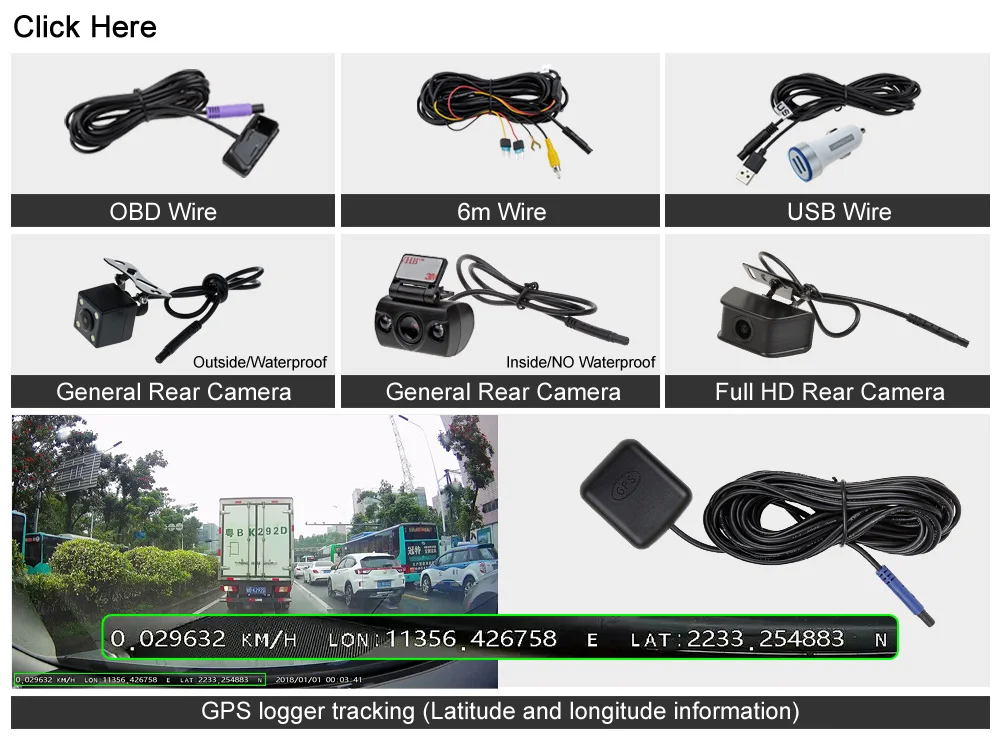

7 kinds of extra option for this DVR

Note
1. The 2m wire is as default wire in the package, no need extra payment.
2. The 6m wire is for Benz GLK, E/W212, R series, ML/GL and BMW 3 series etc., which fuse box is in the rear trunk.
3. OBD wire is for replacing the 2m or 6m power wire.
4. The FULL HD camera can't support OBD power wire. The main core will be changed too.
5. USB wire is for replacing the OBD/2m/6m power wire too. There is a free cigarette lighter charger for customer. it may not fit your car if its cigarette lighter will be kept 12V after ignition off.
6. Please get more information from the extra payment page.

Please click the following photo for the extra payment  /more information. (hyperlink: http://aliurl.cn/b9ic4h)

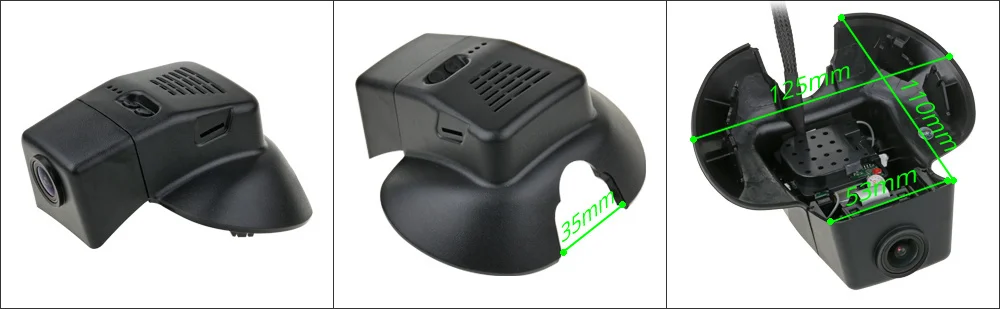

Key Features & Specifications

100% Car Original Style (Special DVR)
F2.0 Large Aperture, 170 Degree Wide Angle
1080P HD Video Recording, Resolution 1920*1080 Pixels
Sony 12 Mega Pixel Sensor, Six Layers Advanced Coating Lens
Built-in WiFi, Support APP Control by iPhone, Android Phone, Android 4.4 Car DVD Navigation.

with G-sensor, Support Motion Detection Record, Continuous Loop Record
Turn on/off by Car, Synchronous Recording
Automatic Focus, Support Night Shot
Share Video on SNS at Any Time Any Where
Download APP from Apple Store/Android Market

Recording Function: Continuous Loop Record
Sensor: SONY IMX323  / Novatek 96672 (Standard Model)
Camera Angle: 170 Degree Wide-Angle
White Balance: Automatic
Night-Vision: Low Illumination Working
WDR: Support
Video Coding Format: H.264 Video Coding/HD MOV Format
Front Camera Video Resolution: FHD1080P, (1920*1080)/One Lens. (1440*1080)/Dual Lenses.
Rear Camera Video Resolution: 680*480/Full HD(Optional)
Frames Per Second: 30(one lens)/25(dual lenses)
Loop Video Clip: Yes.
Gravity Sensing: 3-axis Solid Collision Acceleration Transducer
Motion Detection: Support
Memory: TF Card Max 128GB(Class10)
Loop Video Playback: Support
OSD Language: English, Japanese, French, Spanish, German, Portuguese, Italian, Traditional Chinese, Simplified Chinese
APP Language: English

This is a really HD DVR, it needs a really high speed class 10 memory card. We highly recommend you to buy memory card from us.

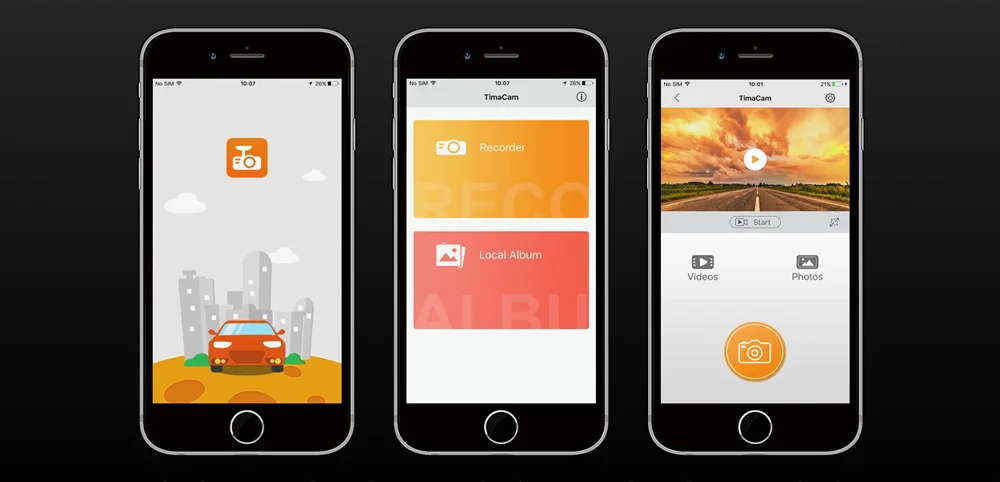

Overview of iOS and Android APP

APP Application
Built-in WiFi module, you can watch the recorded videos, Download the videos, share the videos from the DVR to your smart phone via WiFi.
Note: due to APP design problem, it can't support all the smart phone. In this case, you can try your local others APP for your smart phone. thanks

You can download the APP Apple Store or others Android Market.

Support AV-OUT
It will out video to your Car monitor directly, real-time display. It doesn't support touch screen in your car monitor.

Built-in G-Sensor
Save the important video to a special folder to avoid it was overwrote in urgent case, you should turn on the G-sensor by App.

24-Hours full time guard
When your car off, it can work in low frame rate recording mode, it needs few power from battery. Make your car safety!

Installation, Feedback, Warranty and Brand Story

Designed for the original car style and car color.
Hidden back of rear mirror.

Easier installation. we send middle size fuse box, it fits most of cars, if not, you can manual connect the power.

It will record automatically when ignition on. It will over write the old file automatically too.

No built-in lithium battery, avoid any battery risk.

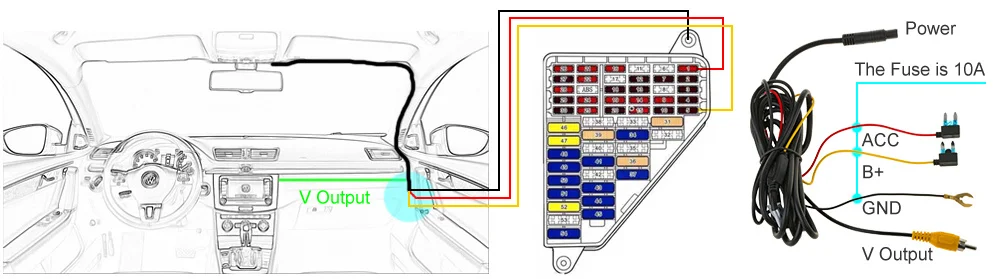

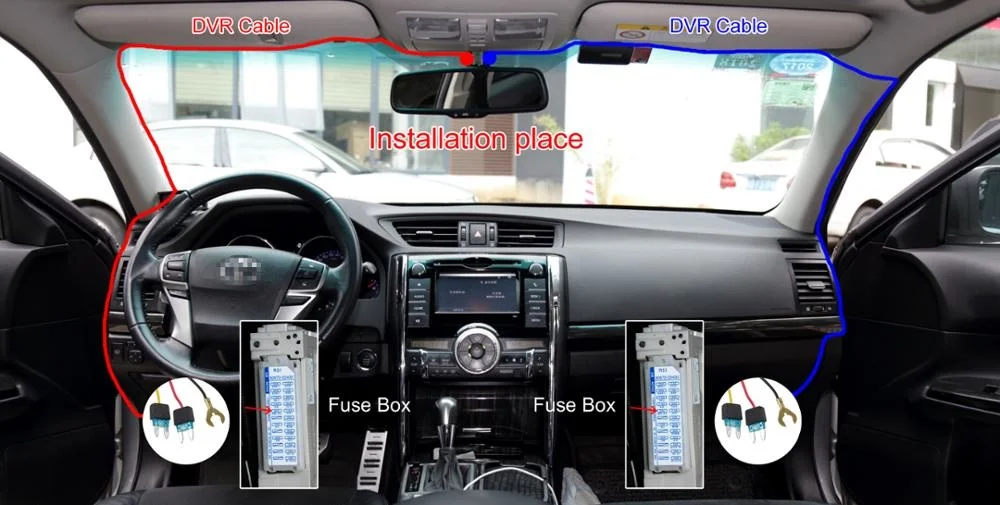

Fuse box is under the steering wheel or passenger side, you can reference your manual. Our fuse is 10A.

Replace your fuse directly in some of cars, you may manual connect the wire (cut the fuse foot of DVR) to the fuse for some of cars too.
B
lack wire (GND):
Connect it to any metal parts.

Red wire(ACC):
12V (+), When you insert key into ignition switch. The ACC wire offers power/electricity only when insert car key into ignition switch and turn it to the left. Such as cigarette lighter, radio etc.

Yellow Wire(B+):
12V (+), This wire will always offer power/electricity even the vehicle is turned off. Such as ports for small lights/dome light/brake light/emergency flashing lights etc.

Note:
If Yellow wire lost power when your car off, DVR will lost all setting, including date/time etc.

Special Benefit for 5 star Feedback-Warranty
After you get the product and everything is OK, please confirm the order and give us all 5 rating. If you can share the photos on aliexpress order comment page, write down the information, which can help to others customer, such as your car model, car year and installation photo etc, we will extend your warranty to 2 years.

Please contact us before leaving any negative and neutral feedback or open any dispute, only communication can solve your problems.We are always standby to improve.

Brand Story

Sino-Smart Digital Technology Co., Ltd. founded in 2009 is a professional manufacturer of Auto AV products, especially Car DVD Navi, car reverse camera and tracking system. We always offer smart and perfect products to our customers with one-stop service. Good quality and reliable service are our solutions to survive from hot competition. "Honesty and Credit" is our way to do business. Contact Smart people today. Just tell us what you need and we will do the rest for you!
