Product Description

Product ID : 32623846416
Regular Price : USD 69.90
Discount Price : USD 69.90
Category ID : 34
Category Name : Automobiles, Parts & Accessories
Saving   :  USD 0
Discount : 0%
Seller ID : 302131
Seller URL : https://www.aliexpress.com/store/302131
Last Stock Available : (When this article was written).

SZDALOS newest TP200  Car Tire Pressure Monitoring System With Mini External Sensors

Main Features

• Reliable and easy to install.
• Real-time tire pressure/temperature .
• Fixed high/low pressure/temperature warnings.
• Instant audio alarm of abnormal pressure or temperature.
• Improve fuel efficiency, extended tire life and avoid abnormal wear of car part.
• Two pressure unit(psi/bar) supply for user to select.
• Sensors transmit pressure and temperature data every 3 seconds.
• Three years warranty .
• We use aliexpress official logistics to send goods, package trails can be tracked

PRODUCT SPECIFICATIONS

Color: black

Type: TP 200

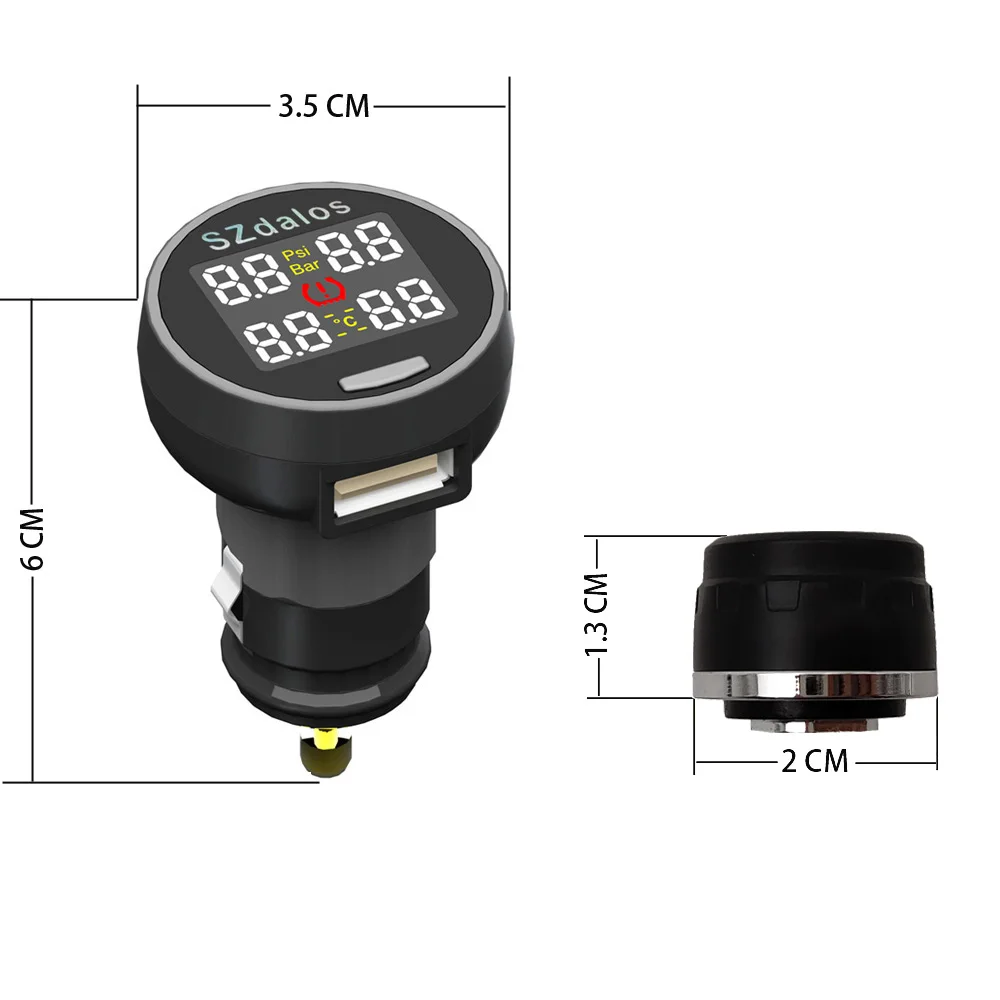

Dimension:
Receiver: approx. 48 ( height ) x 35 ( diameter )mm

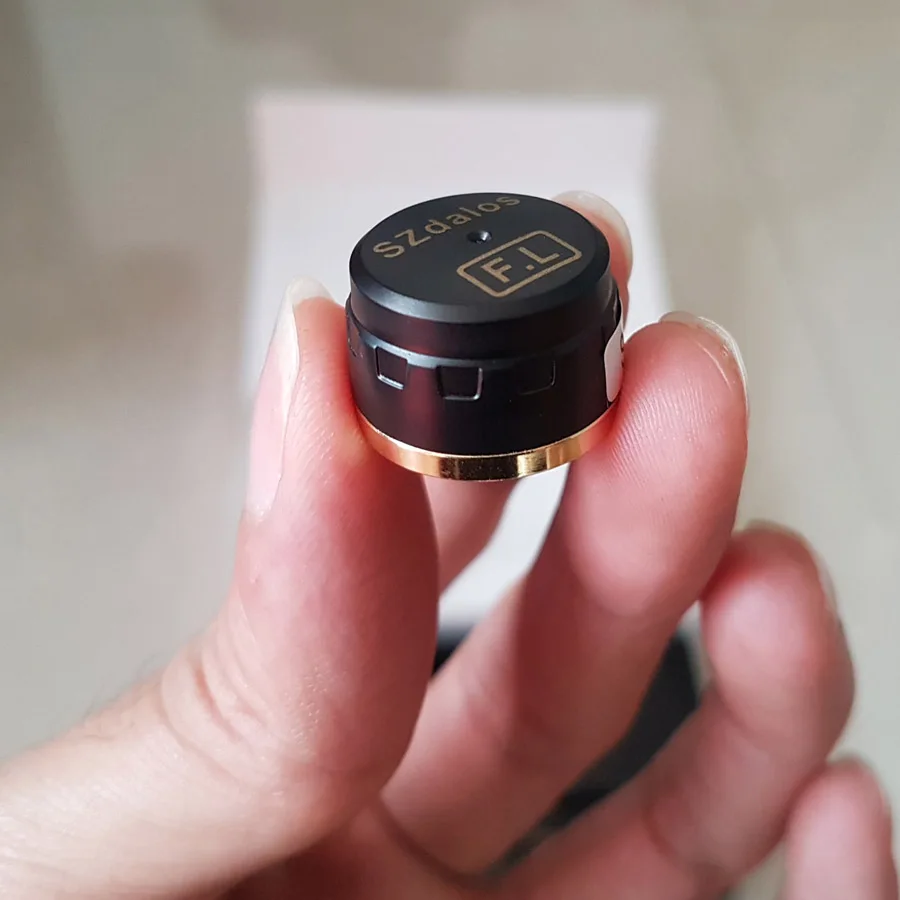

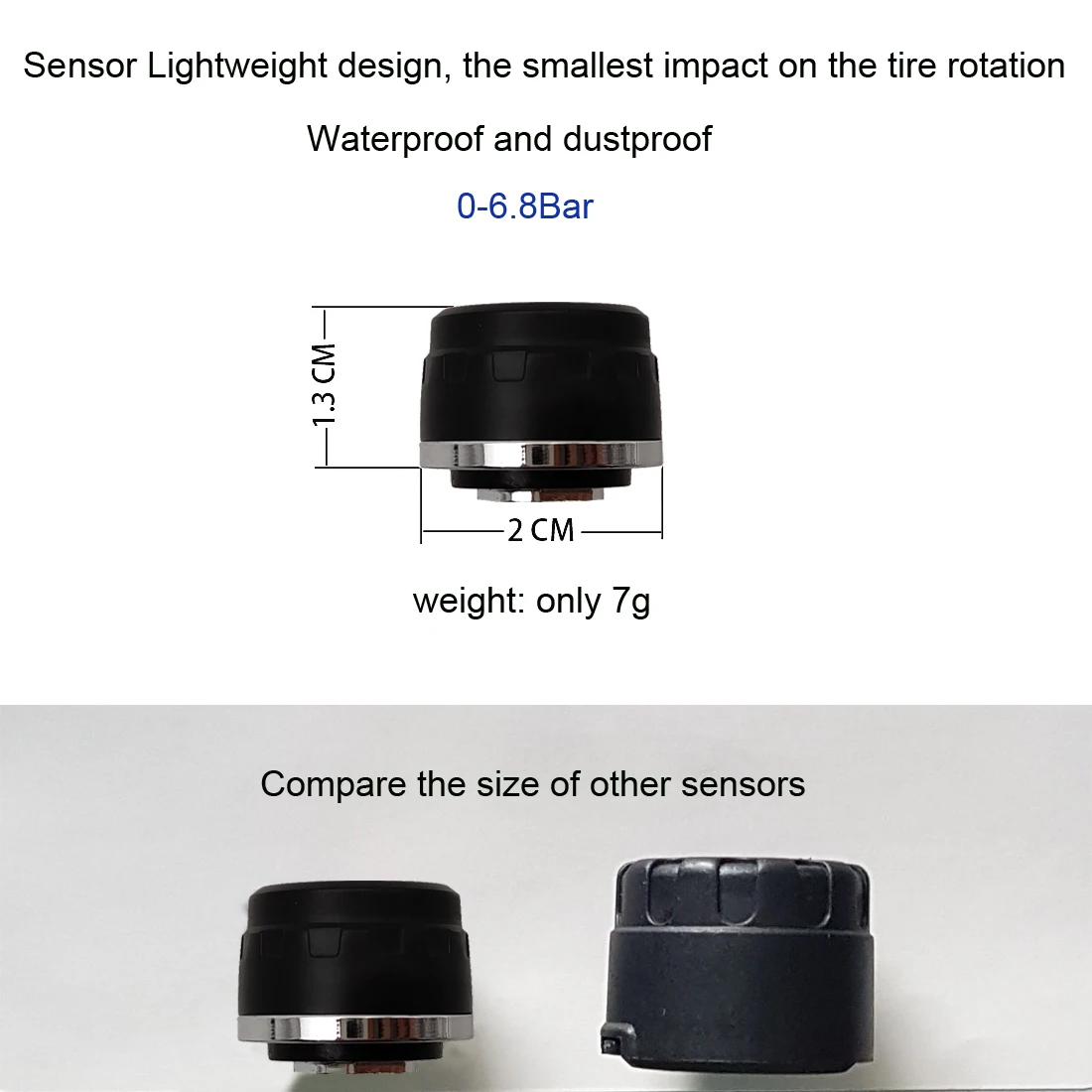

Sensor: approx. 13 ( height ) x 20 ( diameter )mm
Packing size: approx. 185 x 115 x 46mm
Product features
LCD display (LCD size 20 x 17mm)
Valve diameter: 7mm
Pressure units: BAR/PSI
Pressure Range: 0Psi-99Psi / 0Bar-6.8Bar

Simultaneously display 4 tire pressure or temperature
Temperature, excessive pressure alarm, emergency leak alarm
Contact Hood (DC 12V)

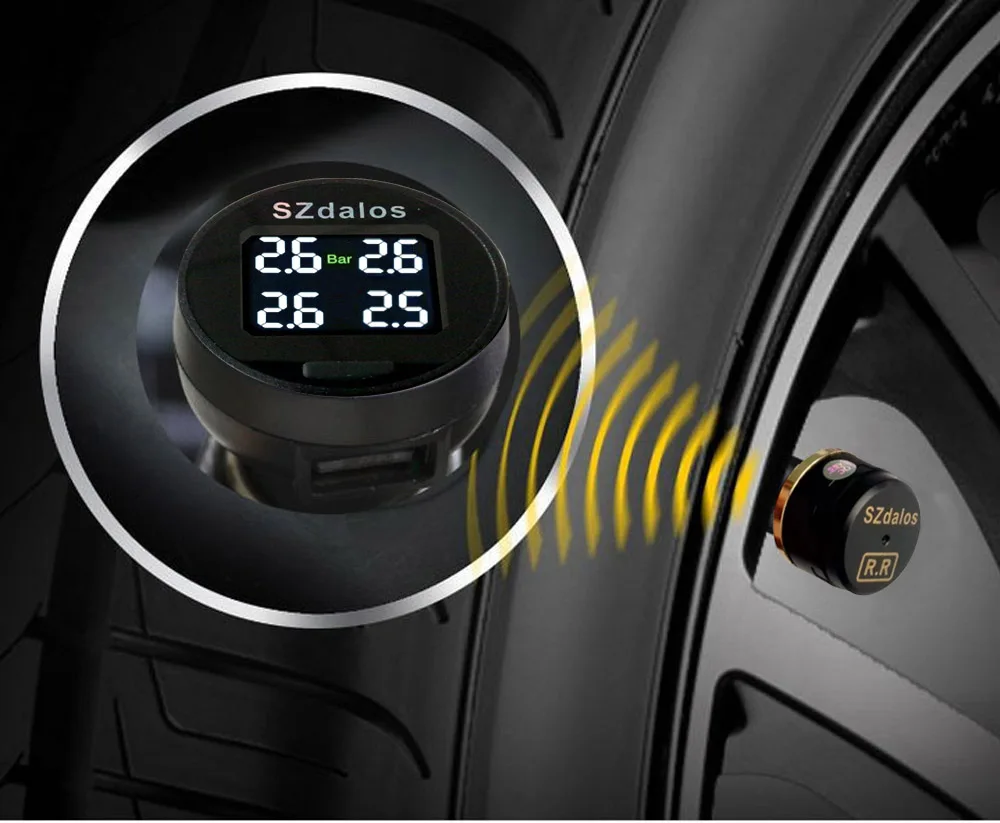

Wireless connection

Exquisite workmanship

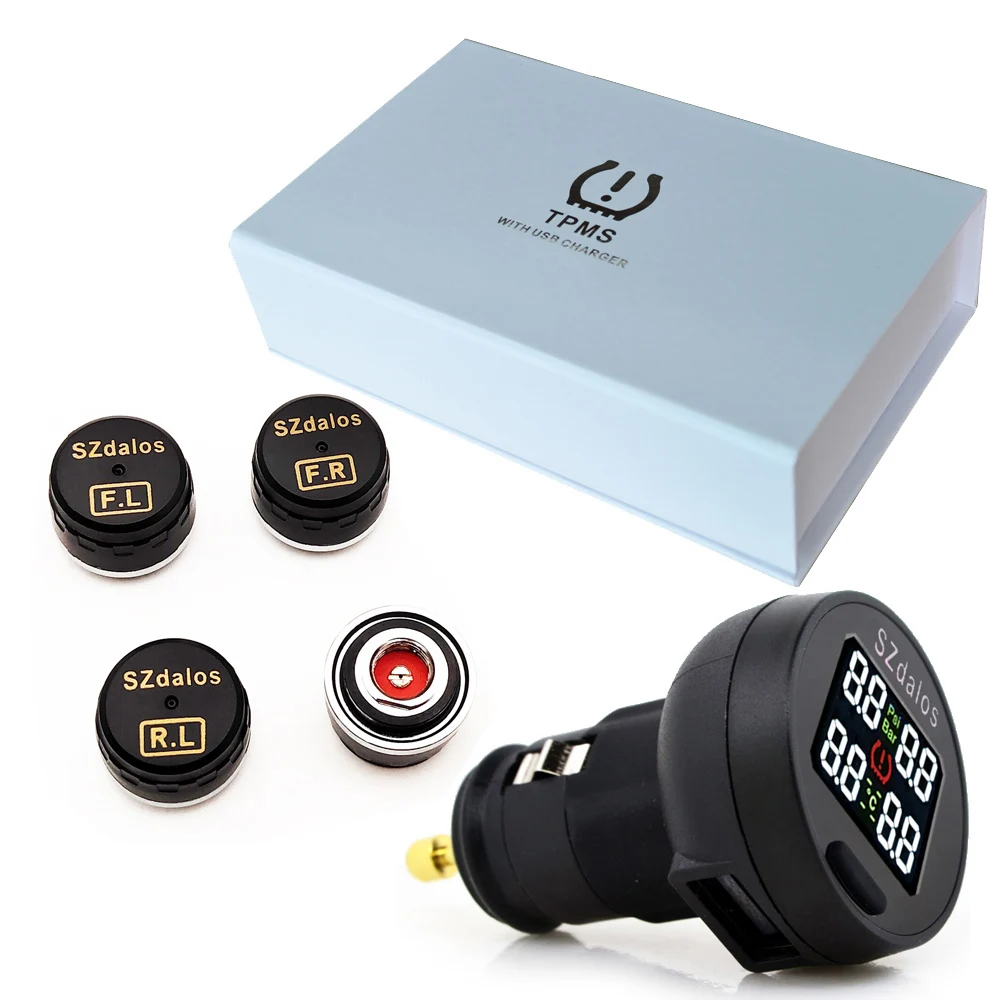

Package Contents

1* TP200 Monitor
1* Wrench
4* External Sensor (We will install the battery before shipment)
4* Valve Mouth
1* USER'S English Manual

Very easy to install, you only need 15 minutes to complete the installation



NOTE:

• We have installed the sensor battery, you can directly use.

• Before installing the sensors, display must be plugged in  and vehicle key turned from ACC.OFF to ACC.ON.

• After you install the TPMS,please drive the car ,When the driving speed is up to 15km/h, the  display will update the  data of tire pressure  automatically.



We have Adequate stock, shipped within 48 hours.

We will carefully check the goods, with additional cartons carefully packaged to send to you

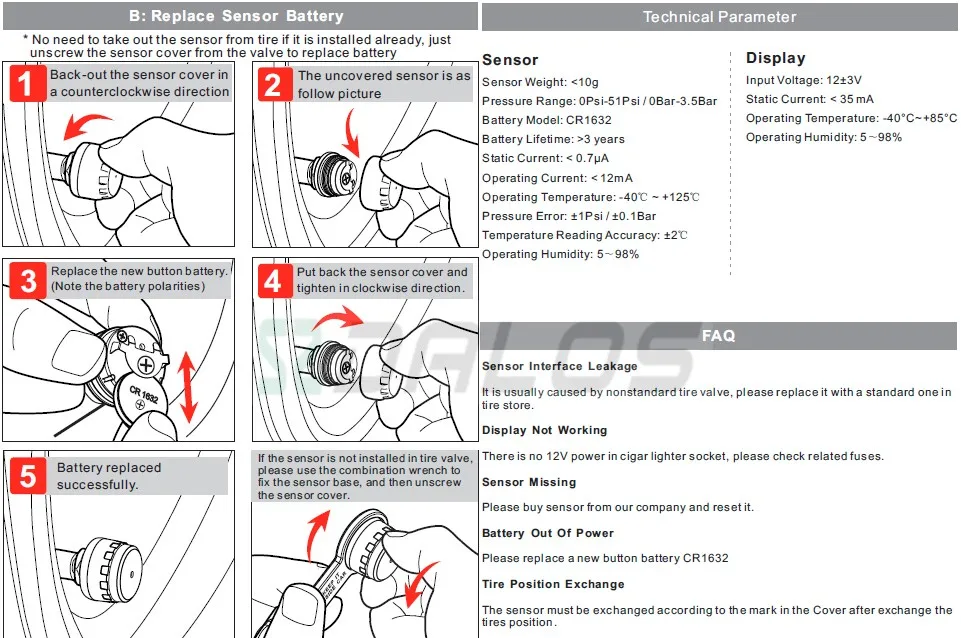

Part of the user manual

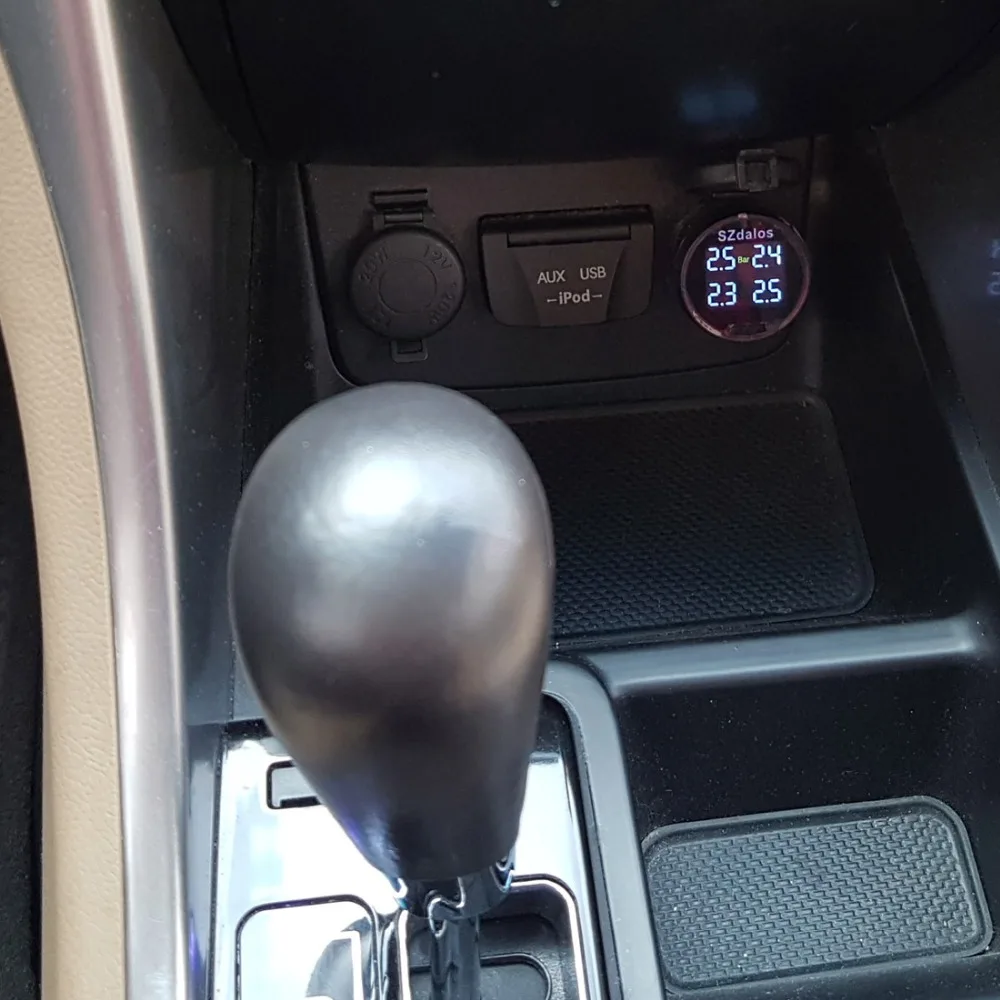

  Display Power On:

Important:  Before installing the sensors, display must be plugged in  and vehicle key turned from ACC.OFF to ACC.ON.

1.Pull out the cigar lighter. 2.Plug in the display. 3.  ACC ON  4.Display power on,  and start to receive data.



Installation of tire sensors

1.Backout dustproof cap  of tire valve.    2.Screw- in the  hexagonal nut.    3.Screw- in the sensor in  proper tire according to  the mark in the Cover.    4.Tighten the sensor by  nut wrench in reverse  direction.  5.Check if it is leaking  with soapsuds.

Driving Checking :

1. When the driving speed is up to 15km/h, the  display will update the  data of tire pressure  automatically.

2. If all the 4 tire pressure  values are shown, it means  the system installed and  working successfully.

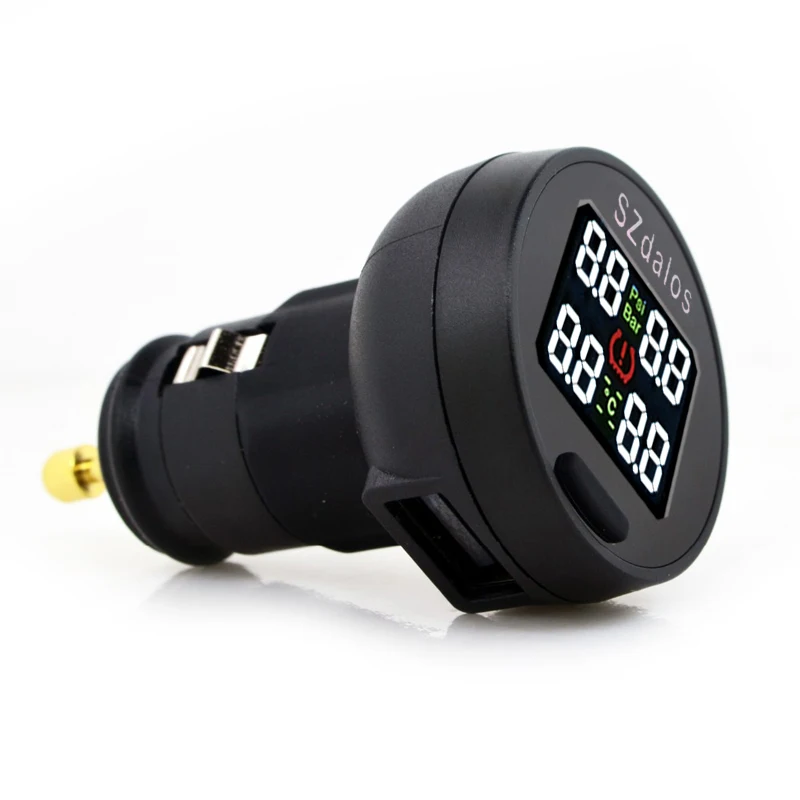

USB Charging Socket :

With display power on  There is a USB socket in display,  it can charge some portable  products such as mobile phone or  MP3 while the tire pressure  monitor is working.  Output voltage: 5V  Output current: 1A



Display Functions:

1.  all 4 tire pressure data shown, The display will show all the tire pressure  values right after the vehicle engine start.

2.  Leakage Warning: Bi-Bi-Bi-Bi-Bi-  .It means the tire may be stick by nail or aged.

3.  Abnormal Pressure Warning: Above 46 Psi:Bi-Bi-Bi-Bi- ,Below 26 Psi: Bi-Bi-Bi-

4.  Sensor Battery Run Out of Power

5.Sensor  Disabled :Bi-

6. High Temperature  Warning :Bi-Bi-   The tire temperature is higher  than 65°C



Temperature Query :

Press the SET button once shortly, the  display will beep once and show tire  temperature values as below , and then  go back to tire pressure values after 10  seconds automatically.

SET Button Functions:

  Press SET button once shortly, the display will show the tire  temperatures.

  Press SET button and hold on:

  Until the display beep once and release --- Pressure unit switching (Psi/Bar)

  Until the display beep twice and release --- High pressure alarm value setting  (Factory default 46Psi)

  Until the display beep thrice and release --- Low pressure alarm value setting  ( Factory default 26Psi)

  Until the display beep 4 times and release --- Enter the code learning mode

   Until the display beep 5 times and release --- Restore factory defaults
