About this item

●The DP-X10 Packs High Quality Audio Media Player,Amplifier and Digital Signal Processor into a Compact.Designed to Simplify Great Audio, Every Amplifier Combines Advanced Switching Amplifier Technology with an Integrated, Full Featured Digital Signal Processor.
●DSP with Amplifier --- 4 input channels,4 output channels car amplifier with 8 channels digital signal processor.Built-in power amplifier 50 watts RMS * 4 at 4 ohms.also could external power amplifier. Large frequency rang from 20-20K Hz.
●DSP with HD Bluetooth player --- Udisk playback input, USB audio input, optical input.Support Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3.Support LCD Remote Control.
●PC Software and Phone App --- DSP settings and adjustments made with windows PC via USB，also android phone via Bluetooth.

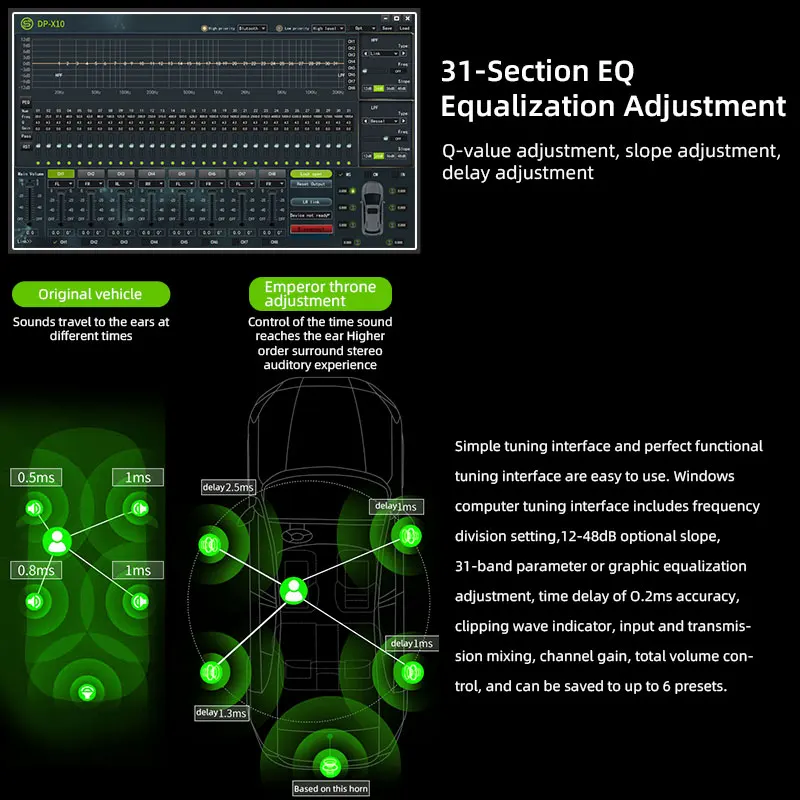

●Adjustment Details --- 8 channel digital processor, 31 band EQ with fine tuning, Adjustable high, low, and band-pass filters (20-20 KHz), Selectable filter slopes (12、24、30、36、42、48 dB/octave), Selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley), Delay: 0-20 milliseconds (0-273"), Phase adjustment: 0 or 180°.

Features---Audio Media Player

DP-X10 is a high-quality audio media player;

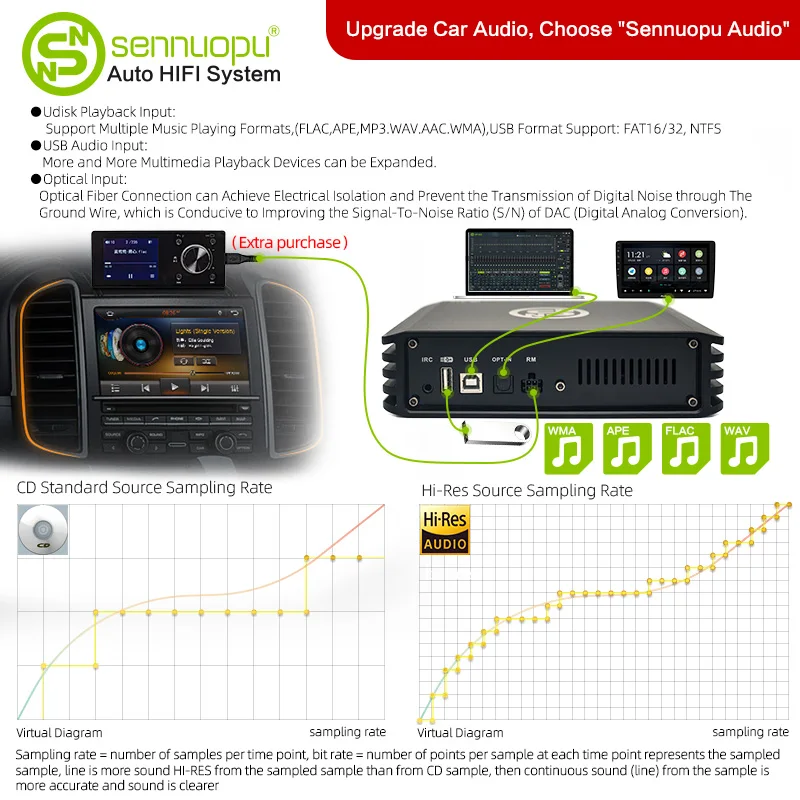

Application of HD Bluetooth player audio solution; Udisk playback input, USB audio input, optical input.
Udisk playback input supports lossless playback (FLAC / APE / WAV / MP3 / WMA/FIA, etc.) and supports LED remote controller (Only applicable to DSP X10)

Features---8 CH Digital Signal Processor

DP-X10 is also an 8 Channel Digital Signal Processor;
Used of 2 Dual Core High-End Hi-Res Audio Processing Chips,The Appeal of The Instrument and The Sound Separation Degree has been Natural Expression.
●PC Software and Phone App --- DSP settings and adjustments made with windows PC via USB，also android phone via Bluetooth.
●Adjustment Details --- 8 channel digital processor, 31 band EQ with fine tuning, Adjustable high, low, and band-pass filters (20-20 KHz), Selectable filter slopes (12、24、30、36、42、48 dB/octave), Selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley), Delay: 0-20 milliseconds (0-273"), Phase adjustment: 0 or 180°.
Note: The APP only supports Android phones and only supports more than 9.0 systems. IPhone is not supported.

Features---4 Channel Power Amplifier

DP-X10 is a 4 Channel Power Amplifier;
The 4 Channel Amplifier Combines Advanced Switching Amplifier Technology.Real Time Checking and Correcting Errors in Switching Circuit, Adjusting the Dynamic Effect of Output Filter, Correcting and Amplifying in Time, Making The Amplified Sound Output Smooth, Fine and Natural.

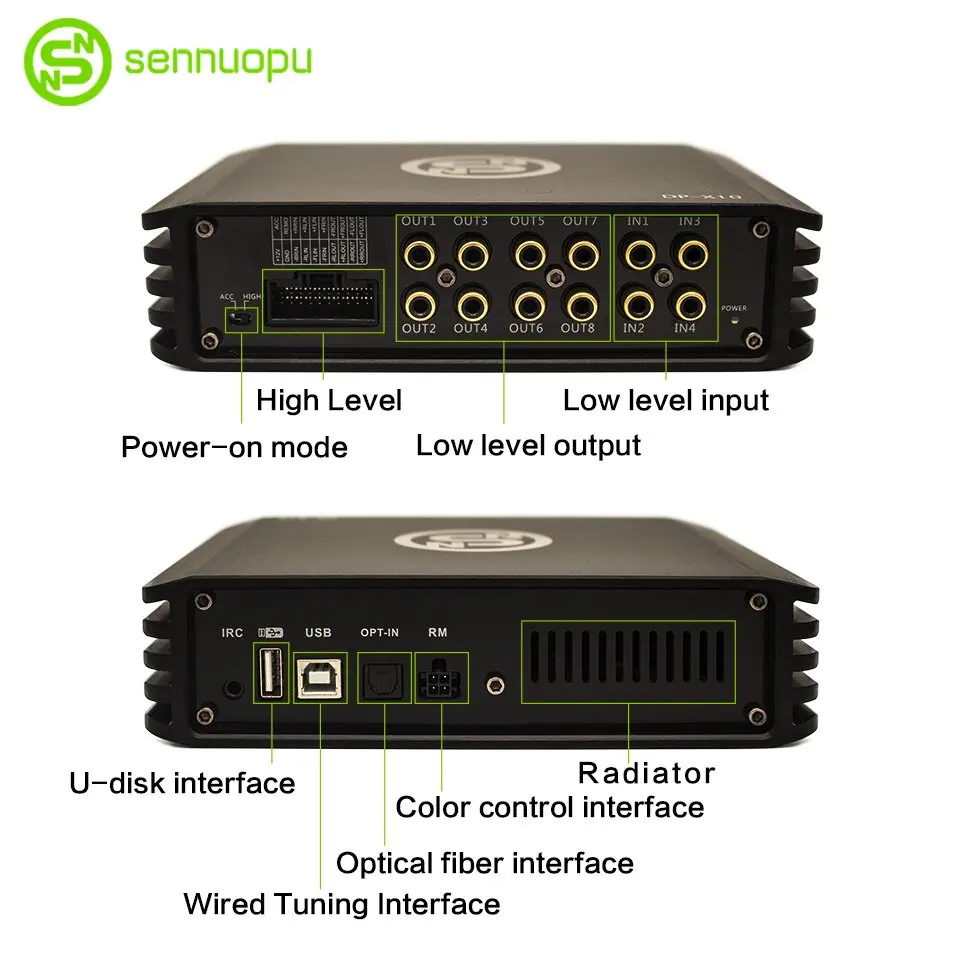

Installation Guide

1. Support plug-and-play installation of special car wiring harness, each model is different, please contact us to inquire your model.
Note: Additional purchase is required for special car wiring harness
2. Support multi-channel power amplifier installation.

Specification

1. Working voltage: 10V～17V
2. Standby Power Loss:<0.1W
3. Frequency response: 20Hz～20KHz;
4. S/N Ratio: >100dB;
5. Degree of separation: >80dB;
6. THD+N:< 0.01%;
7. High level noise：90.96uVrms
8. RCA Noise :7.66uVrms
9. REM Output:12V（0.2A）
10. Signal input range: 0.05Vrms～10Vrms;
11. High level input: 4 channels
12. RCA input: 4 channels
13. Bluetooth input: support
14. USB input: FLAC/APE/WAV/MP3/WMA/FIA etc.
15. optical input: support
16. Sound card input: support
17. AUX input: support
18. High level output: MAX 90W*4 @4Ω,
19. High level output: RMS 50W*4 @4Ω
20.RCA output: 8 channels
21.Output signal gain: -60dB~6dB
22.Tuning program: support windows
23.Mobile program: support Android phone APP
24.31 band equalizer: adjustable 20-20 KHz
25.Filter slope: 12, 24, 36, 48 dB/octave
26.Delay: 0-20 milliseconds (0-273 inches)
27.Phase adjustment: 0 or 180°.
